Power Steering Gear Inlet Pipe/Hose Replacement Steering Gear Assembly

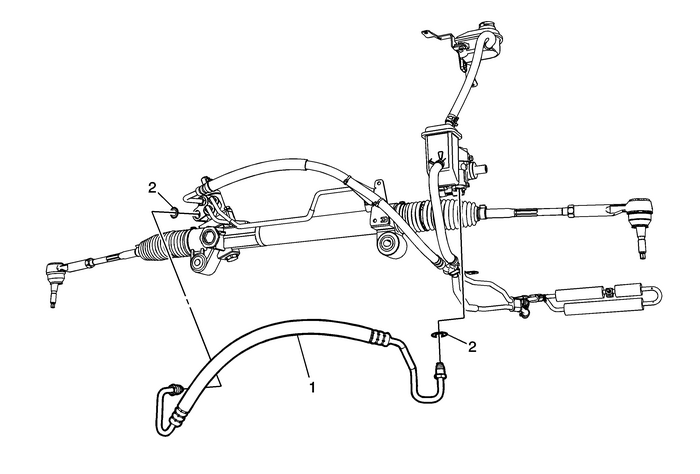

Power Steering Gear Inlet Pipe/Hose Replacement

Callout

Component Name

Preliminary ProceduresPlace drain pans under the vehicle.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove as much power steering fluid from the upper power steering fluid reservoiras possible.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Power Steering Gear Inlet Hose

Procedure

After the power steering gear inlet hose fittings are started, tighten both fittingsto the specification given.

Caution:Refer toFastener Caution.

Tighten

34-Y (25-lb-ft)

2

Power Steering Gear Inlet Hose O-ring Seal (Qty:-2)

ProcedureInstall NEW power steering gear inlet hose O-ring seals.Fill and bleed the power steering system. Refer toPower Steering System Bleeding.Clean any excess power steering fluid from the vehicle.
