Power Steering Pump Pulley Replacement Hydraulic Steering Steering Pump

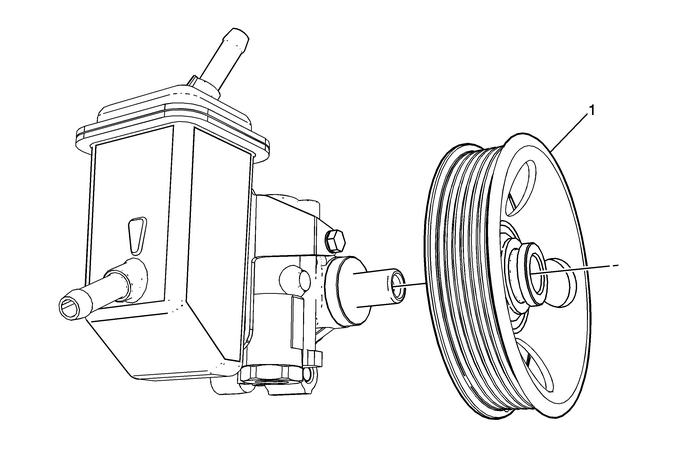

Power Steering Pump Pulley Replacement

Callout

Component Name

Preliminary Procedure

Remove the power steering pump. Refer toPower Steering Pump Replacement.

1

Power Steering Pump Pulley

ProcedureUse theJ-25034-CRemoverin order to remove the power steering pump pulley.Use theJ-25033-CInstallerin order to install the power steering pump pulley.Ensure the axial tolerance of the power steering pump pulleyon the shaft is within 0.25 mm (0.010 in).Special ToolsJ-25033-CPulley InstallerJ-25034-CPulley Remover

For equivalent regional tools, refer toSpecial Tools.
