Power Steering Fluid Reservoir Replacement - Upper Hydraulic Steering Steering Fluid Reservoir

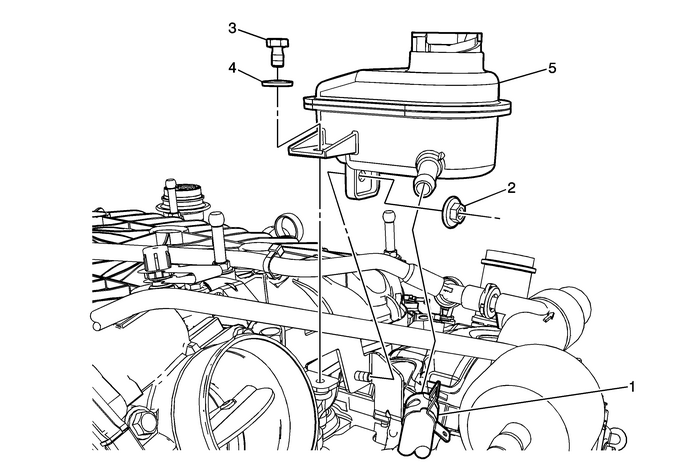

Power Steering Fluid Reservoir Replacement - Upper

Callout

Component Name

Preliminary ProceduresPlace drain pans under the vehicle.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove as much power steering fluid from the upper powersteering fluid reservoir as possible.Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.Remove the air cleaner assembly. Refer toAir Cleaner Assembly Replacement.

1

Power Steering Fluid Reservoir Outlet Hose

Procedure

Disconnect the power steering fluid reservoir outlet hosefrom the upper power steering fluid reservoir.

2

Power Steering Fluid Reservoir Nut

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

3

Power Steering Fluid Reservoir Bolt

Tighten

9-Y(80-lb-in)

4

Power Steering Fluid Reservoir Washer

5

Power Steering Fluid Reservoir - Upper

ProcedureFill and bleed the power steering system. Refer toPower Steering System Bleeding.Clean any excess power steering fluid from thevehicle.
