Chevrolet Equinox Service Manual: Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Chevrolet Equinox Service Manual / Chassis / Brakes / Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Removal ProcedureWith the engine OFF, apply and release the brake pedalseveral times until the brake pedal becomes firm to deplete thepower vacuum brake booster vacuum reserve.Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Disconnect the power brake booster vacuum hose quickconnect-(3).Release the power brake booster vacuum hose from the routingclip-(2)-on the power brake booster auxiliarypump.Disconnect the power brake booster auxiliary pump electricalconnector.Release the power brake booster auxiliary pump electricalconnector retainer from the pump bracket.

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

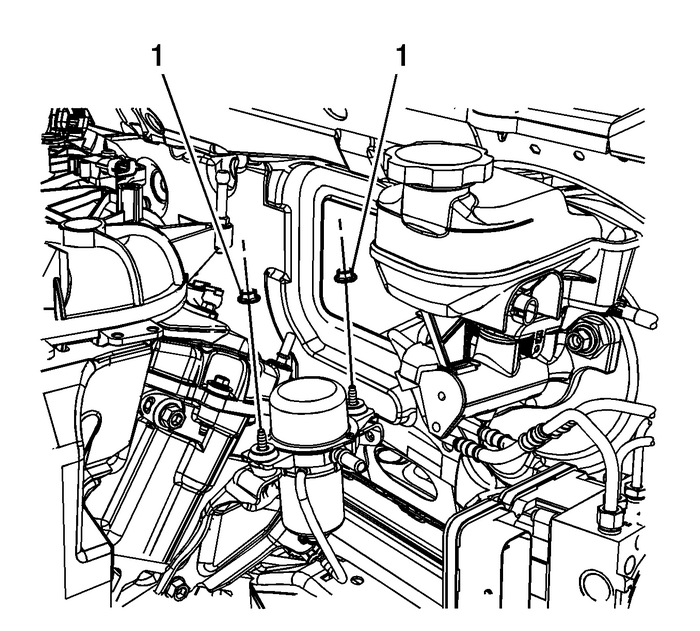

Remove the power brake booster auxiliary pumpnuts-(1).Remove the power brake booster auxiliary pump.

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

If removing the power brake booster auxiliary pump bracket,remove the power brake booster auxiliary pump bracketbolts-(1).

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

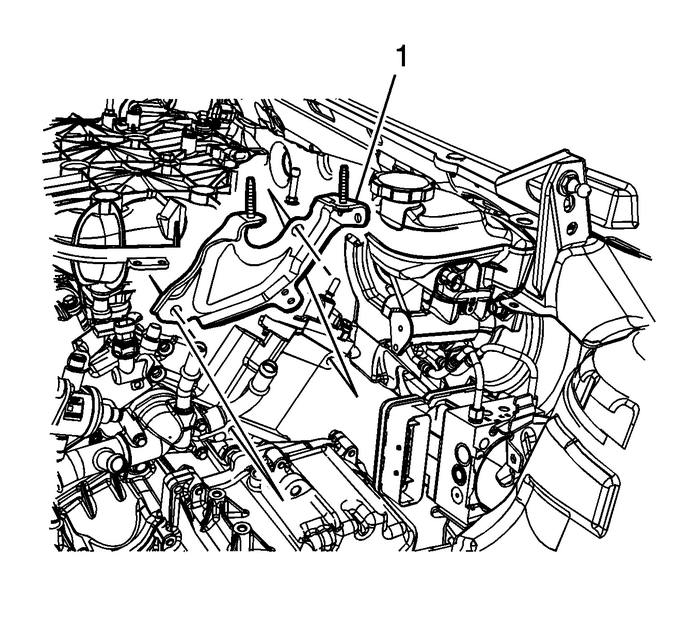

Remove the power brake booster auxiliary pumpbracket-(1).Installation Procedure

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

If removed, install the power brake booster auxiliary pumpbracket-(1).

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Caution:Refer toFastener Caution.

Install the power brake booster auxiliary pump bracketbolts-(1)-and tighten to-50-Y(37-lb-ft).

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Install the power brake booster auxiliary pump to the pumpbracket.Install the power brake booster auxiliary pumpnuts-(1)-and tighten to-9-Y(80-lb-in)

Power Brake Booster Pump Replacement Hydraulic Brakes Brake Booster

Connect the power brake booster vacuum hose quickconnect-(3).Connect the power brake booster auxiliary pump electricalconnector.Secure the power brake booster auxiliary pump electricalconnector retainer to the pump bracket.Secure the power brake booster vacuum hose from the routingclip-(2)-on the power brake booster auxiliarypump.Install the intake manifold cover. Refer toIntake Manifold Cover Replacement.
