Oil Pump Installation Engine Lubrication Oil Pump

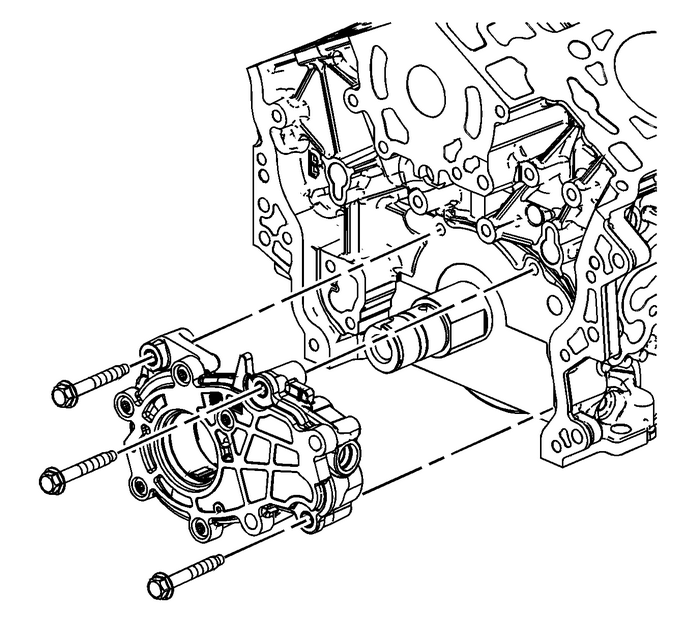

Align the oil pump drive gear with the crankshaft flats andinstall the oil pump to the engine block.Align the pump body with the mounting holes in the cylinderblock.

Caution:Refer toFastener Caution.

Install the oil pump bolts and tighten to25-Y(18-lb-ft).
