Transmission Rear Mount Bracket Replacement (FWD) Automatic Transmission Unit

00oo..

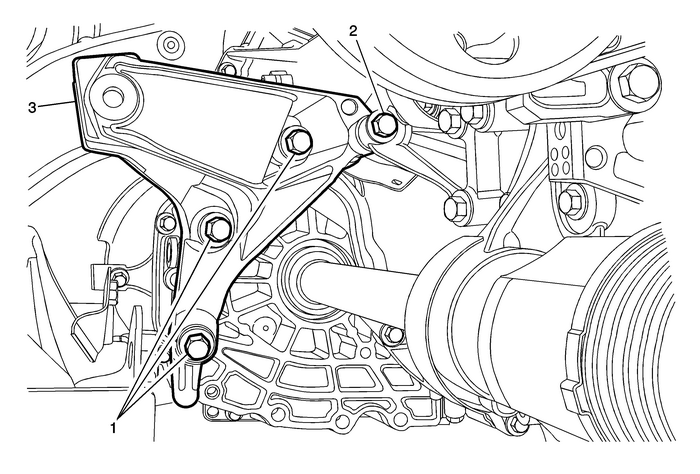

Transmission Rear Mount Bracket Replacement

Callout

Component Name

Danger:To avoid any vehicle damage, serious personal injury or deathwhen major components are removed from the vehicle and the vehicleis supported by a hoist, support the vehicle with jack stands atthe opposite end from which the components are being removed andstrap the vehicle to the hoist.

Warning:Refer toSafety Glasses Warning.

Preliminary ProcedureRaise and suitably support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the right front tire and wheel assembly. Refer toTire and Wheel Removal and InstallationRemove the rear mount. Refer toTransmission Rear Mount Replacement

1

Transmission Rear Mount Bracket Fastener(Qty:-3)

Caution:Refer toFastener Caution.

Procedure

Support the transmission.

Tighten

100-Y(74-lb-ft)

2

Transmission Rear Mount Bracket Fastener(Qty:-1)

Tighten

57-Y(42-lb-ft)

3

Transmission Rear Mount Bracket

Transmission/Transaxle
...

2-6 Clutch Piston Installation (6T40/45/50) Automatic Transmission Unit
2-6 Clutch Piston InstallationCalloutComponent Name12–6 Clutch Piston AssemblyNote:Position the 2–6 piston air bleed and large slot toward the top of the case.DT-47796 seal protector prevents the ...
