Chevrolet Equinox Service Manual: Battery Negative Cable Replacement (LFX) Low Voltage Battery

Chevrolet Equinox Service Manual / Electrical / Battery System / Battery Negative Cable Replacement (LFX) Low Voltage Battery

Removal ProcedureRecord all of the radio station presets.Disconnect the battery negative cable. Refer toBattery Negative Cable Disconnection and Connection.

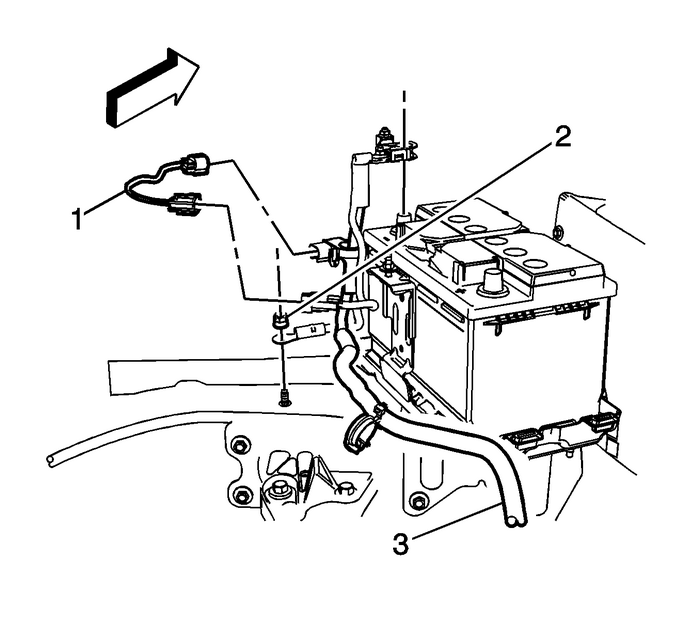

Battery Negative Cable Replacement (LFX) Low Voltage Battery

Disconnect the battery current sensor from the bodyharness-(1).Remove the battery negative cable ground nut-(2)from the frame rail.

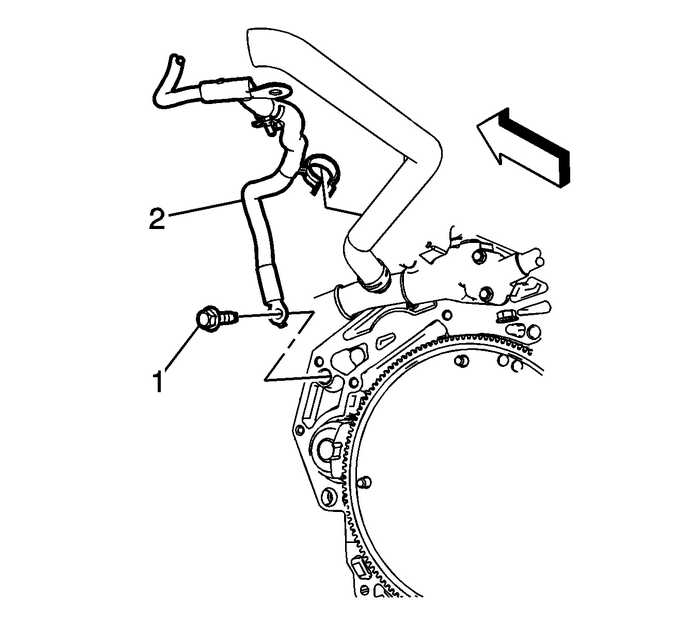

Battery Negative Cable Replacement (LFX) Low Voltage Battery

Remove the battery negative cable engine groundbolt-(1) from the engine block.

Note:Observe how the battery negative cable was routed within theengine compartment.

Remove the battery negative cable-(2).Installation Procedure

Battery Negative Cable Replacement (LFX) Low Voltage Battery

Caution:Refer toFastener Caution.

Install the battery negative cable engine groundnut-(1) to the engine and tighten to25-Y(18-lb-ft).

Battery Negative Cable Replacement (LFX) Low Voltage Battery

Install the battery negative cable frame groundnut-(1) to the frame rail and tighten to25-Y(18-lb-ft).Install battery negative cable clamp to the battery post.Refer toBattery Negative Cable Disconnection and Connection.Reset the radio channel presets.
