Battery Tray Support Replacement Battery Holder and Tiedown

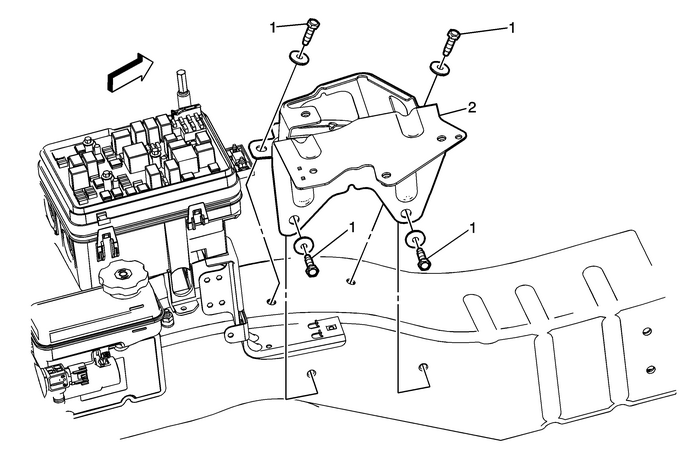

Battery Tray Support Replacement

Callout

Component Name

Preliminary ProcedureDisconnect the negative battery cable.Refer toBattery Negative Cable Disconnection and Connection.Remove the positive battery cable.Refer toBattery Positive Cable ReplacementRemove the battery.Refer toBattery ReplacementRemove the battery tray.Refer toBattery Tray Replacement

1

Bolt (Qty:-4)

Caution:Refer toFastener Caution.

Tighten

22-Y(16-lb-ft).

2

Battery Tray Support Bracket

Battery Tray Replacement Battery Holder and Tiedown
Battery Tray ReplacementCalloutComponent NamePreliminary ProcedureRemove the battery.Refer toBattery Replacement1Bolt (Qty:-3)Caution:Refer toFastener Caution.Tighten22-Y(16-lb-ft).2Battery TrayTip:Un ...
