Battery Tray Replacement Battery Holder and Tiedown

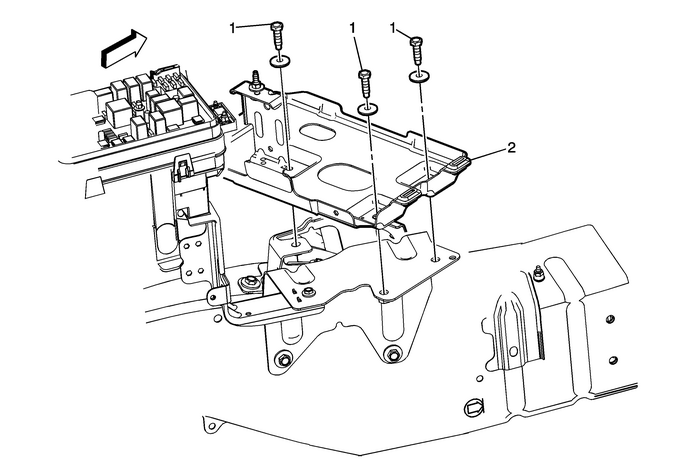

Battery Tray Replacement

Callout

Component Name

Preliminary Procedure

Remove the battery.Refer toBattery Replacement

Bolt (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

22-Y(16-lb-ft).

Battery Tray

Tip:Unclip the harness retainers from the battery tray.

Battery Replacement Low Voltage Battery

Battery ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Reposition the engine control module bra ...

Battery Tray Support Replacement Battery Holder and Tiedown

Battery Tray Support ReplacementCalloutComponent NamePreliminary ProcedureDisconnect the negative battery cable.Refer toBattery Negative Cable Disconnection and Connection.Remove the positive battery ...
