Battery Replacement Low Voltage Battery

Battery Replacement

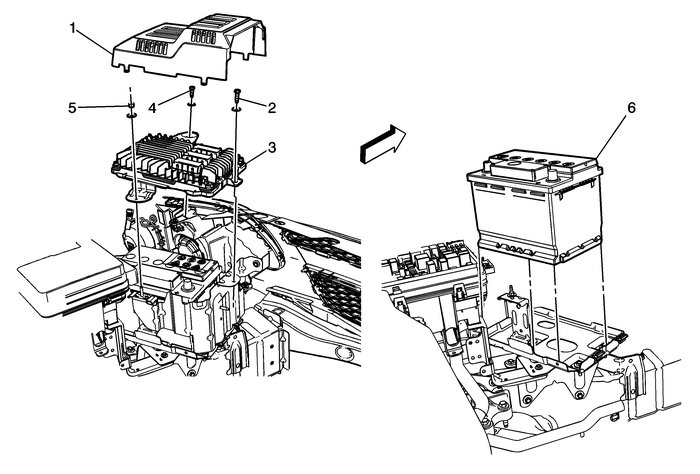

Callout

Component Name

Preliminary ProcedureDisconnect the negative battery cable. Refer toBattery Negative Cable Disconnection and Connection.Reposition the engine control module bracket/battery hold-down retainer. Refer toEngine Control Module Replacement.Remove the positive battery cable from the battery post. Refer toBattery Positive Cable ReplacementRemove the push in retainers from the front portion of the left front bumper fasciaopening cover and reposition the cover. Refer toFront Bumper Fascia Opening Cover Replacement.

1

Battery Cover

2

Engine Control Module Bracket Bolt

Caution:Refer toFastener Caution.

Tighten

9-Y (80-lb-in)

3

Engine Control Module

4

Battery Retainer Bracket Bolt

Tighten

9-Y (80-lb-in)

5

Battery Retainer Bracket Nut

Tighten

9-Y (80-lb-in)

6

Battery

Battery Negative Cable Disconnection and Connection Low Voltage Battery
Battery Negative Cable Disconnection and ConnectionCalloutComponent NamePreliminary ProceduresTurn on the radio and record all of the radio station presets.Ensure all lamps and accessories are turned ...

Battery Tray Replacement Battery Holder and Tiedown
Battery Tray ReplacementCalloutComponent NamePreliminary ProcedureRemove the battery.Refer toBattery Replacement1Bolt (Qty:-3)Caution:Refer toFastener Caution.Tighten22-Y(16-lb-ft).2Battery TrayTip:Un ...
