Battery Negative Cable Disconnection and Connection Low Voltage Battery

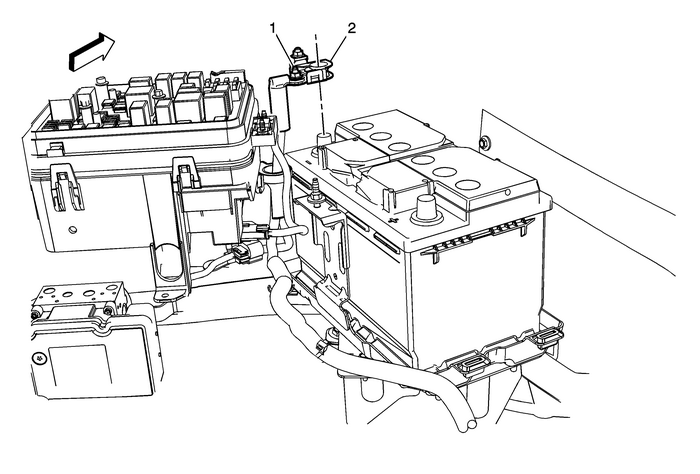

Battery Negative Cable Disconnection and Connection

Callout

Component Name

Preliminary ProceduresTurn on the radio and record all of the radio station presets.Ensure all lamps and accessories are turned off.Ensure the ignition switch is in the OFF position, and remove the ignition key.

Negative Battery Cable Terminal Nut

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

Negative Battery Cable Clamp
