Engine Mount Bracket Replacement Engine Block Engine Mounts

am

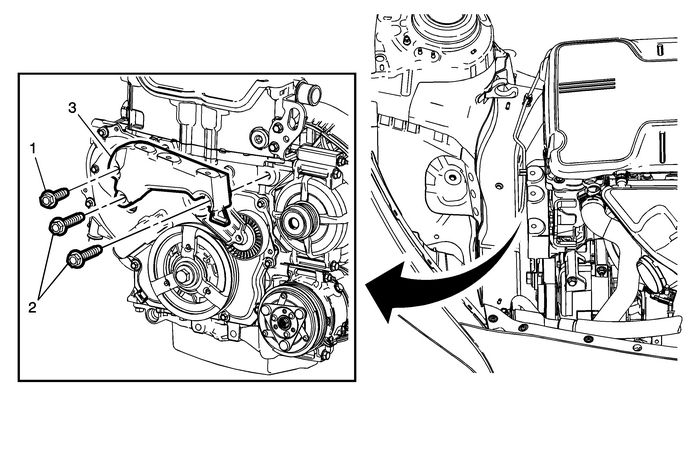

Engine Mount Bracket Replacement

Callout

Component Name

Preliminary Procedure

Remove the engine mount. Refer toEngine Mount Replacement - Right Side.

1

Engine Mount Bracket Fastener

Caution:Refer toFastener Caution.

Tighten

100-Y(74-lb-ft)

2

Engine Mount Bracket Fastener (Qty,2)

Tighten

100-Y(74-lb-ft)

3

Engine Mount Bracket
