Chevrolet Equinox Service Manual: Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

Removal Procedure

Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

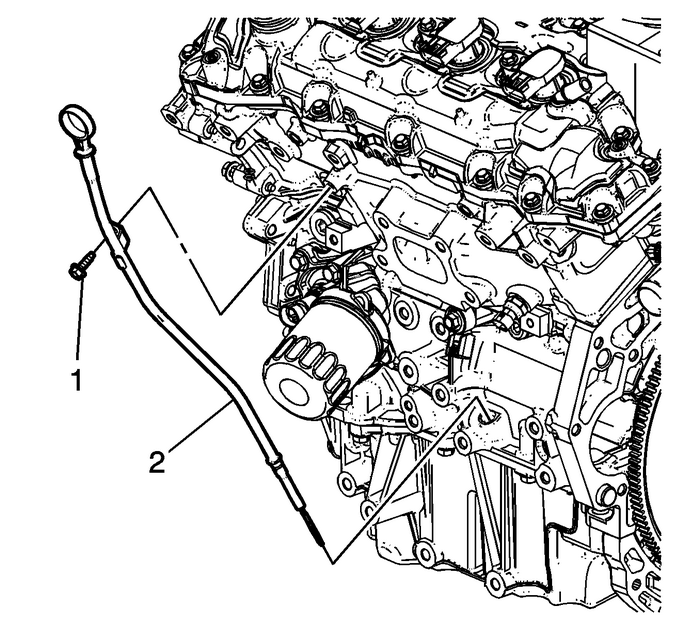

Remove the intake manifold cover. Refer toIntake Manifold Cover ReplacementRemove the oil level indicator tube bracketbolt-(1).Remove the oil level indicator and tube-(2) bysliding the tube out from the lower crankcase hole.

Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

Remove and discard the O-ring from the oil level indicatortube if damaged.Installation Procedure

Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

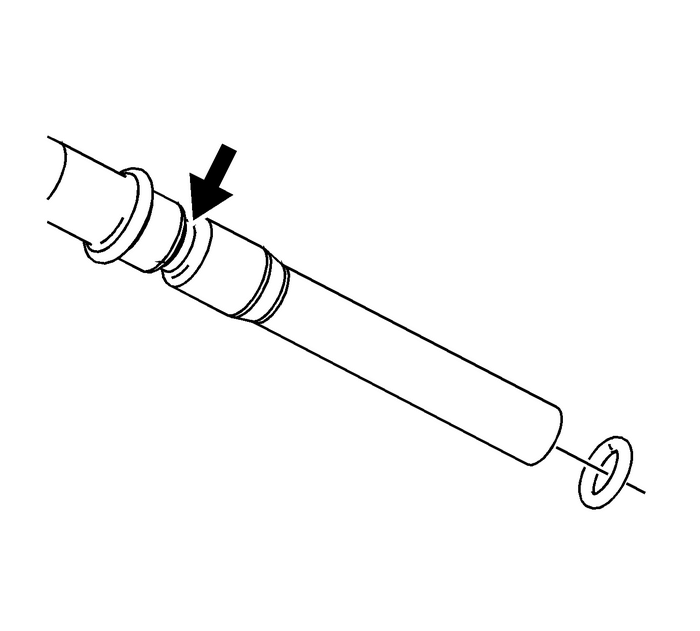

Install a NEW O-ring on the oil level indicator tube.

Oil Level Indicator Tube Replacement Engine Lubrication Oil Level Indicator Tube

Install the oil level indicator and tube-(2) bysliding the tube down through the lower crankcase hole.

Caution:Refer toFastener Caution.

Install the oil level indicator tube bracketbolt-(1) and tighten to10-Y(89-lb-in).Install the intake manifold cover. Refer toIntake Manifold Cover Replacement.
Intake Manifold Replacement Intake and Forced Induction Intake Manifold
Removal ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the air cleaner outlet duct. Refer toAir Cleaner Outlet Duct Replacement.Remove the power steering f ...

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement Emissions PCV
Removal ProcedureRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the PCV hose-(1) from the camshaftcover.Installation ProcedureInstall the PCV hose-(1) to the camsha ...
