Chevrolet Equinox Service Manual: Positive Crankcase Ventilation Hose/Pipe/Tube Replacement Emissions PCV

Chevrolet Equinox Service Manual / Powertrain / Engine / Positive Crankcase Ventilation Hose/Pipe/Tube Replacement Emissions PCV

Removal Procedure

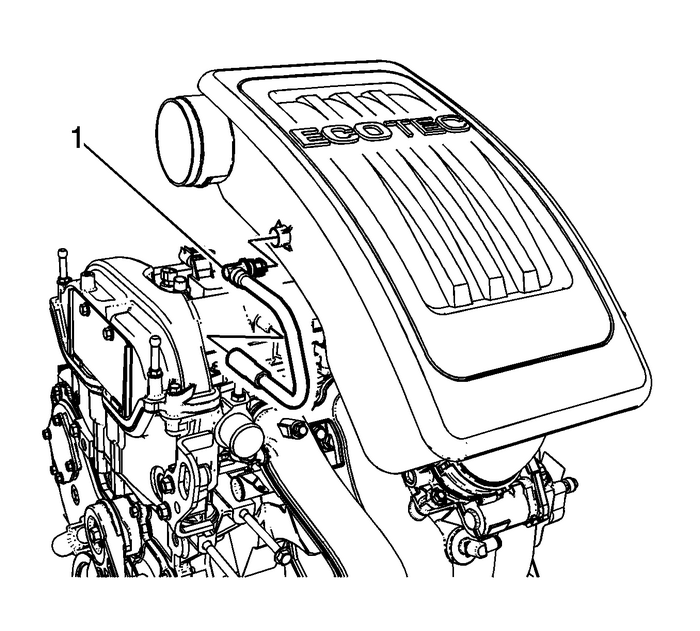

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement Emissions PCV

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Remove the PCV hose-(1) from the camshaftcover.Installation Procedure

Positive Crankcase Ventilation Hose/Pipe/Tube Replacement Emissions PCV

Install the PCV hose-(1) to the camshaftcover.Install the intake manifold cover. Refer toIntake Manifold Cover Replacement.
