Following are the most common symbols that appear on a map screen.

Navigation Symbols Entertainment Audio-Visual

The vehicle symbol indicates the current position and heading direction of the vehicleon the map.

Navigation Symbols Entertainment Audio-Visual

The destination symbol marks the final destination after a route has been planned.

Navigation Symbols Entertainment Audio-Visual

The waypoint symbol marks one or more set waypoints.

A waypoint is a stopover destination point added to the planned route.

The estimated time and distance to the destination are displayed.

Navigation Symbols Entertainment Audio-Visual

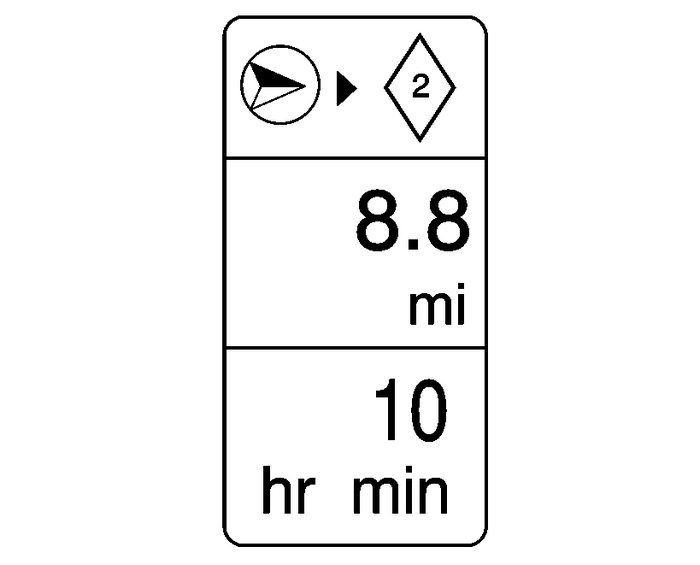

If waypoints have been added to the current route, each waypoint destination displaysestimated time and distance.

Navigation Symbols Entertainment Audio-Visual

This symbol indicates that the map view is North up: North up displays North at thetop of the map screen regardless of the direction the vehicle is traveling.

Select this screen symbol to change the view to Heading up or 3D.

Navigation Symbols Entertainment Audio-Visual

This symbol indicates that the map view is Heading up.

Heading up view displays the direction the vehicle is traveling at the top of themap screen. The shaded triangle indicates North.

Press this screen symbol to change to 3D mode.

The 3D symbol is the same as the Heading up symbol, but the map is in 3D.

Navigation Symbols Entertainment Audio-Visual

The No GPS symbol appears when there is no Global Positioning System (GPS) satellitesignal.

Navigation Symbols Entertainment Audio-Visual

This symbol at the bottom of a map screen changes the current map mode screen.

Navigation Symbols Entertainment Audio-Visual

speedlimit25

This symbol on the right of the map screen displays the speed limit while on a route.The speed limit may not be accurate due to changes from the Department of Transportation,the local municipalities, or older map data. Always follow the posted speed limiton the road.

Driving on a Route

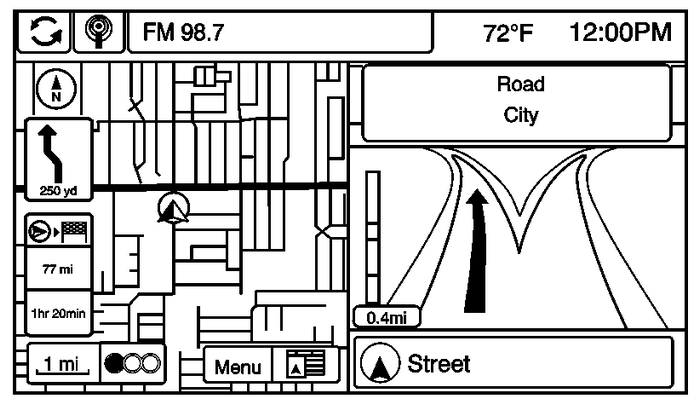

Urgent Maneuver Alert

The system will give an indication that the next maneuver is close.

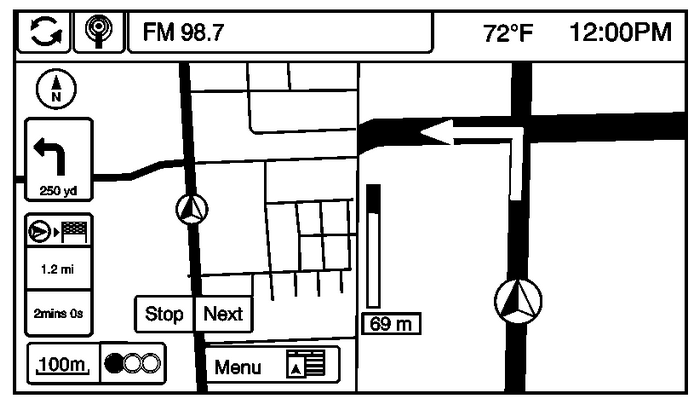

Driving on a Highway

Navigation Symbols Entertainment Audio-Visual

2f12=00pm

Driving on a Residential Road

Navigation Symbols Entertainment Audio-Visual

12:00pm
