Mobile Telephone Microphone Replacement Entertainment

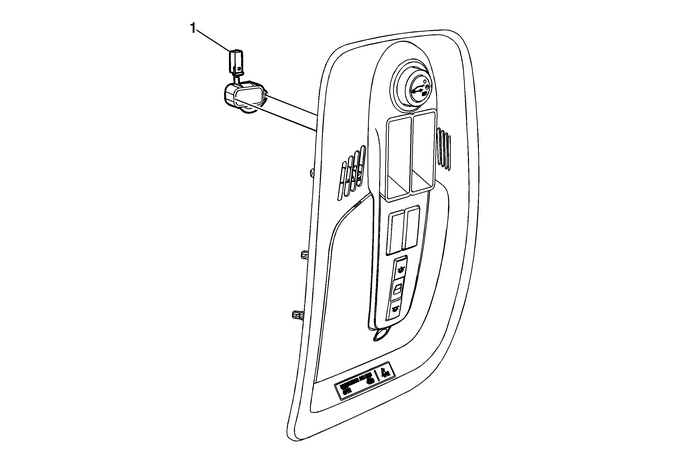

Mobile Telephone Microphone Replacement

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

1

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
