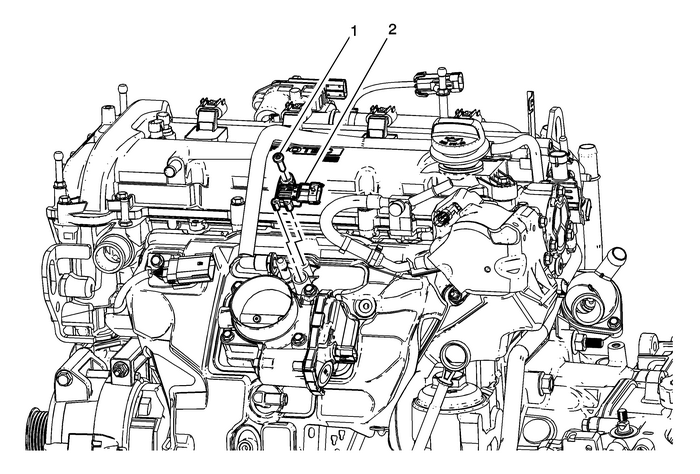

Manifold Absolute Pressure Sensor Replacement

Callout

Component Name

Preliminary Procedure

Remove the air cleaner resonator. Refer toAir Cleaner Outlet Resonator Replacement

1

Manifold Absolute Pressure Sensor Fastener

Caution:Refer toFastener Caution.

Procedure

Disconnect the electrical connector.

Tighten

4-Y(35-lb-in)

2

Manifold Absolute Pressure Sensor
