Control Valve Body Assembly Assemble (Gen 2) Automatic Transmission Unit Control Valve Body

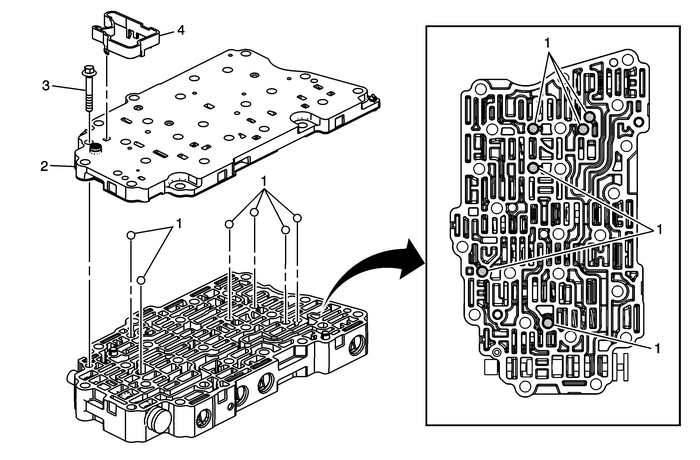

Control Valve Body Assembly Assemble

Callout

Component Name

1

Valve Body Ball Check Valve-(Qty:-6)

2

Valve Channel Plate

3

Control Valve Body Bolt-M5-x-40.5-(Qty:-1)

Caution:Refer toFastener Caution.

Tighten

7-Y (62-lb-in)

4

Control Solenoid Valve Support
