Liftgate Wedge Replacement Panels

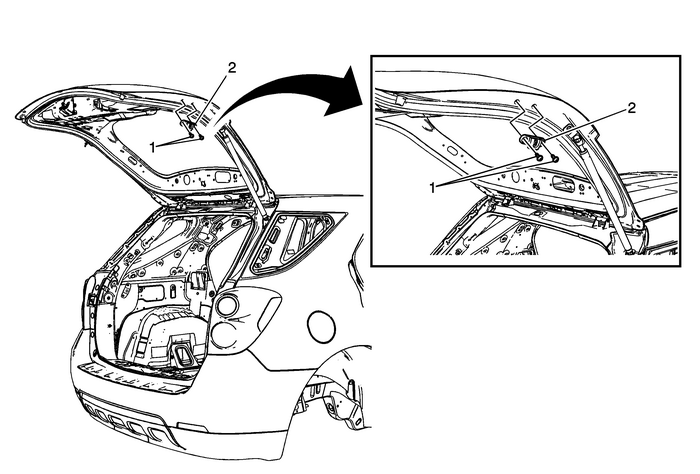

Liftgate Wedge Replacement

Callout

Component Name

1

Liftgate Wedge Retainer (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

7-Y(62-lb-in)

2

Liftgate Wedge
