Sunroof Housing Front Drain Hose Replacement Roof Drainage

Sunroof Housing Front Drain Hose Replacement

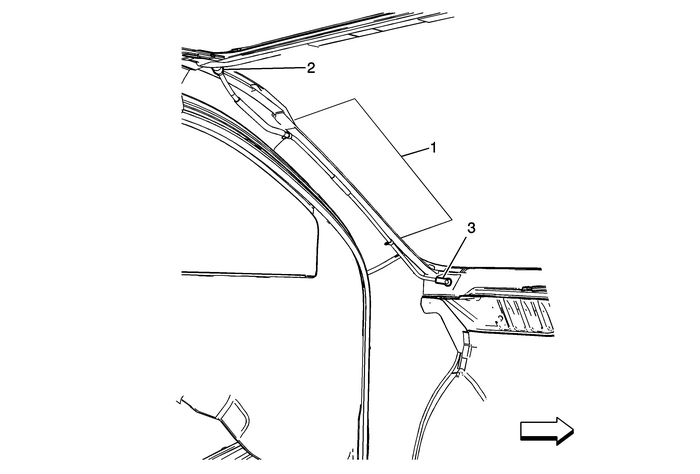

Callout

Component Name

Preliminary ProceduresIt is only necessary to lower the headliner. Only do thosesteps in headliner replacement that will lower the headliner enoughto gain access to the part. Refer to Install the headliner. RefertoHeadlining Trim Panel ReplacementRemove the instrument panel. Refer toLower Trim Pad Retainer ReplacementRemove the air inlet grille panel. Refer toAir Inlet Grille Panel Extension ReplacementWhen servicing the sunroof housing front left drain hose itwill be necessary to remove the wiper transmission. Refer toWindshield Wiper Transmission Replacement.

1

Sunroof Housing Front Drain Hose Retainers(Qty-:-2)

2

Sunroof Housing Front Drain Hose to Frame

Procedures

Remove the sunroof housing front hose tie strap to releasethe hose from the frame spout.

3

Sunroof Housing Front Drain Hose and Grommet

ProceduresReplace the sunroof housing front drain hose retainers to theA-pillar if damaged when removing.Secure the sunroof housing front drain hose to the framespout with a new tie strap.Ensure that the grommet is fully seated into the plenum toprevent water leaks. Do the following:Pour a cup of water in the sunroof housing front framespout.Ensure that the frame spout to hose and hose to the plenumgrommet is not leaking in the vehicle.Ensure that the water is draining in the plenum and out ofthe vehicle before installing the headlinder and instrumentpanel.
