Sunroof Air Deflector Replacement Moonroof/Sunroof

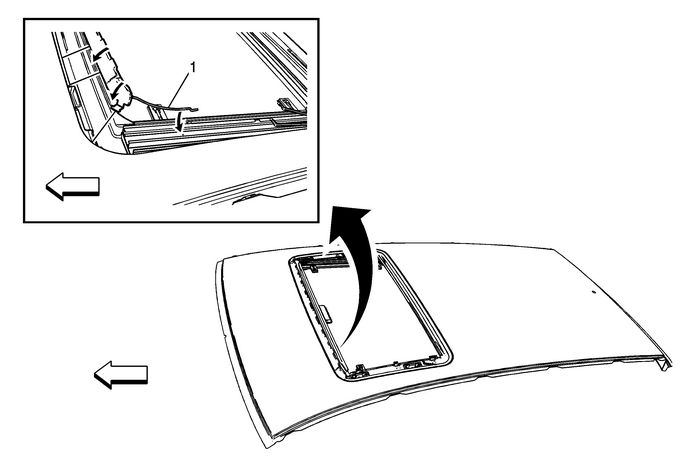

Sunroof Air Deflector Replacement

Callout

Component Name

Preliminary Procedure

Open the sunroof window.

1

Sunroof Air Deflector

ProcedurePush down on the right front side of the airdeflector.While pushing down on the right front side of air deflector.Lift up on the air deflector, releasing air deflector from theroof.Remove the air deflector springs for the sunroof frame onboth sides.

Tip:Do not lift up on the spring of the air deflector with astrong force, it could bend.
