Liftgate Wedge Replacement - Body Side Panels

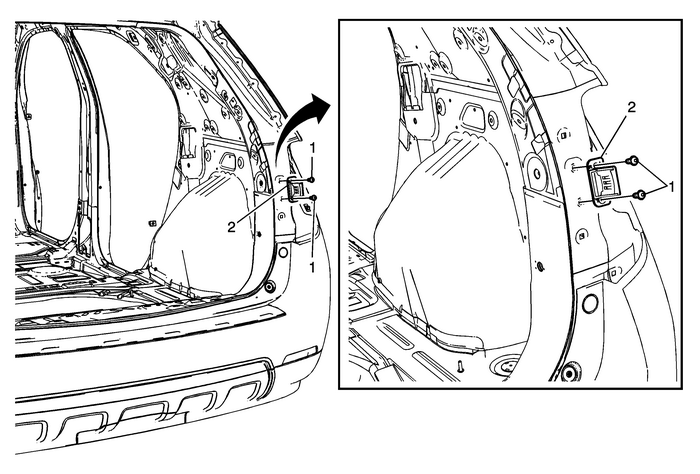

Liftgate Wedge Replacement - Body Side

Callout

Component Name

Preliminary Procedure

Remove the tail lamp. Refer toTail Lamp Replacement.

1

Liftgate Wedge Retainer (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

7-Y(62-lb-in)

2

Liftgate Wedge

Tip:The liftgate wedge will fit the right of left side.
