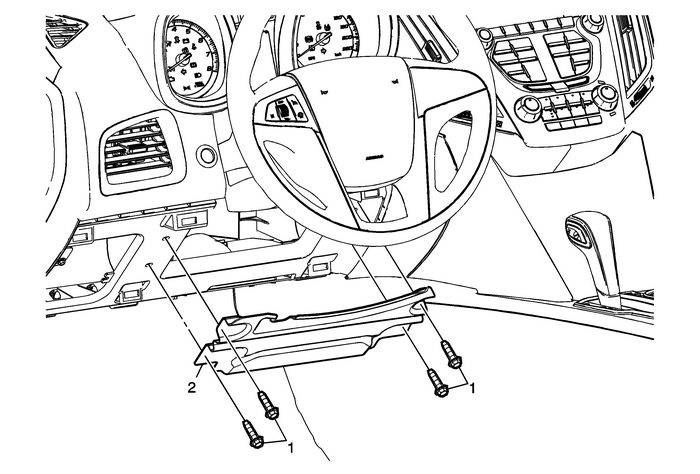

Driver Knee Bolster Reinforcement Replacement

Callout

Component Name

Preliminary Procedure

Remove the drivers knee bolster panel. Refer toDriver Knee Bolster Panel Replacement.

Drivers Knee Bolster Panel Reinforcement Fasteners(Qty:-4)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

Drivers Knee Bolster Panel Reinforcement Assembly
