Driver Knee Bolster Panel Replacement (Terrain) Dashboard Assembly Dash Trim

Driver Knee Bolster Panel Replacement

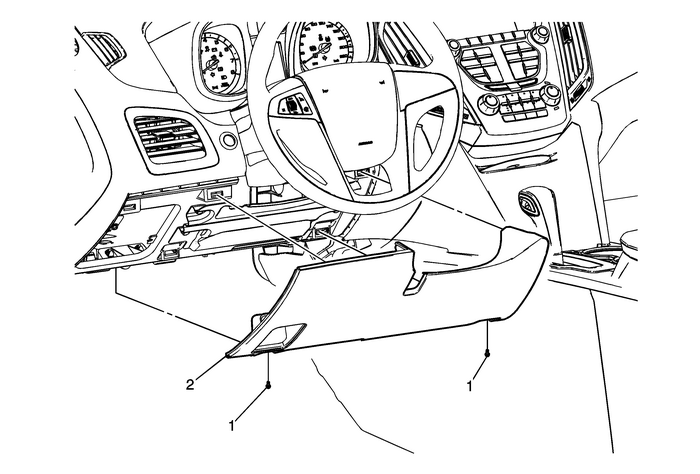

Callout

Component Name

Preliminary Procedure

Remove the hood primary release handle. Refer toHood Primary Latch Release Cable Handle Replacement.

1

Drivers Knee Bolster Panel Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Drivers Knee Bolster Panel Assembly
