Coat Hook Replacement Trim Panels/Welts

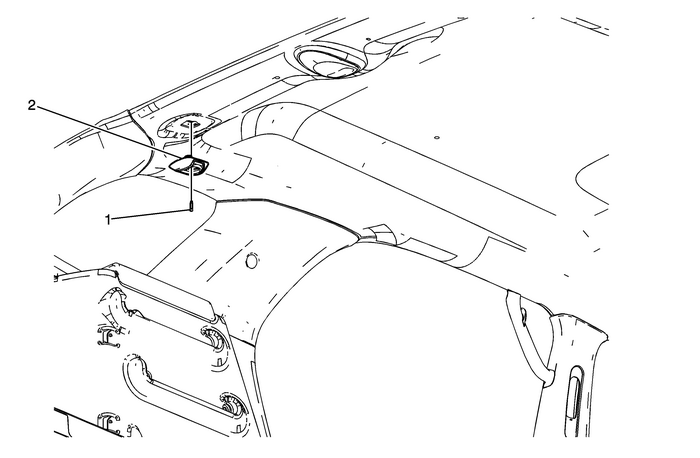

Coat Hook Replacement

Callout

Component Name

1

Coat Hook Fastener

Caution:Refer toFastener Caution.

Tighten

3.3-Y(29-lb-in)

2

Coat Hook Assembly
