Center Pillar Upper Trim Panel Replacement Trim Panels/Welts

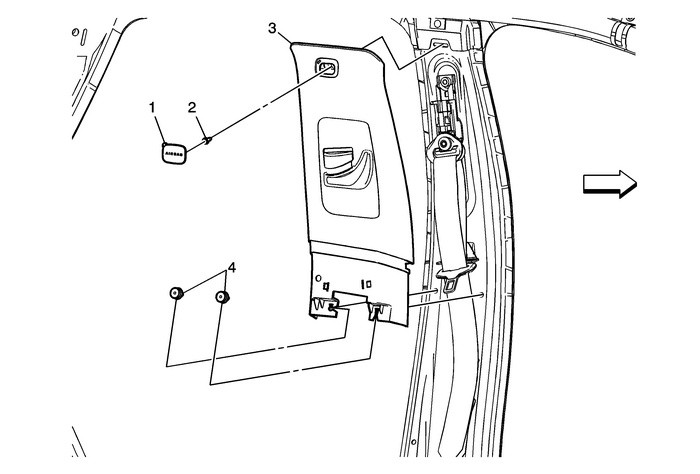

Center Pillar Upper Trim Panel Replacement

Callout

Component Name

Preliminary ProceduresDisable the roof rail SIR system. Refer toSIR Disabling and Enabling.Remove the seat belt from the seat anchor. Refer toDriver or Passenger Seat Retractor Side Belt Replacement.Remove the center pillar lower trim panel. Refer toCenter Pillar Lower Trim Panel Replacement.

1

Center Pillar Upper Trim Panel Bolt Cap

2

Center Pillar Upper Trim Panel Fastener

Caution:Refer toFastener Caution.

Tighten

2-Y(18-lb-in)

3

Center Pillar Upper Trim Panel Assembly

Procedure

Pull the trim panel toward the inside of the vehicle todisengage the retainers.

4

Center Pillar Upper Trim Clip (Qty:-2)
