Instrument Panel Outer Air Outlet Replacement (Terrain) Dashboard Assembly

Instrument Panel Outer Air Outlet Replacement

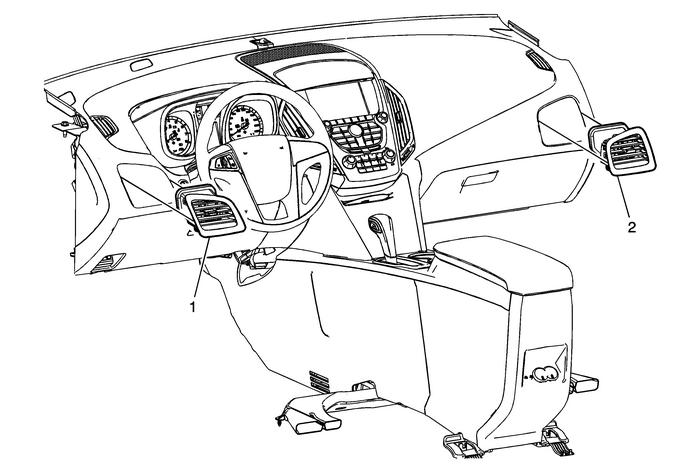

Callout

Component Name

1

Instrument Panel Outer Air Outlet (Left)

Procedure

Use a flat bladed plastic trim tool in order to release theinstrument panel outer air outlet from the instrument panelassembly.

2

Instrument Panel Outer Air Outlet (Right)

Procedure

Use a flat bladed plastic trim tool in order to release theinstrument panel outer air outlet from the instrument panelassembly.
