Front Fender Lower Rear Molding Replacement (Terrain) Panels Fenders

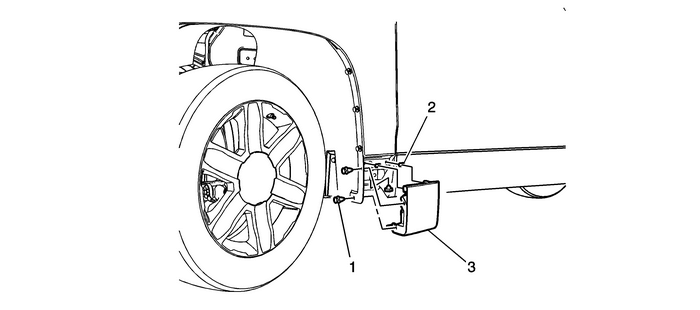

Front Fender Lower Rear Molding Replacement

Callout

Component Name

Preliminary Procedure

Remove the mud guards (if equipped).

1

Lower Wheelhouse Liner Retainer (Qty:-2)

Tip:Release the retainers by using a small flat-bladed tool torelease the center pin.

2

Bodyside Outer Panel Retainer (Qty:-3)

Procedure

Use a trim type tool in order to release the retainers fromthe bodyside panel.

3

Front Fender Lower Rear Molding-Left Hand
