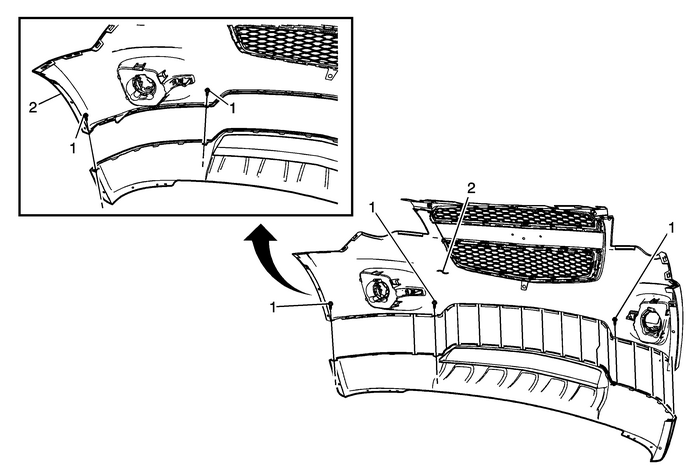

Front Bumper Upper Fascia Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper energy absorber. Refer toFront Bumper Energy Absorber Replacement.

1

Front Bumper Upper Fascia Bolt

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Front Bumper Upper Fascia

ProcedureCarefully push a small nylon wedge between the lower fasciaand the upper fascia. Insert a small flat-bladed tool into thefascia slot and depress the tabs one at a time and pull on thefascia at the same time to gradually remove the upper fascia fromthe fascia.Transfer parts as needed.
