Front Bumper Lower Fascia Replacement (Terrain) Bumpers Front Bumper

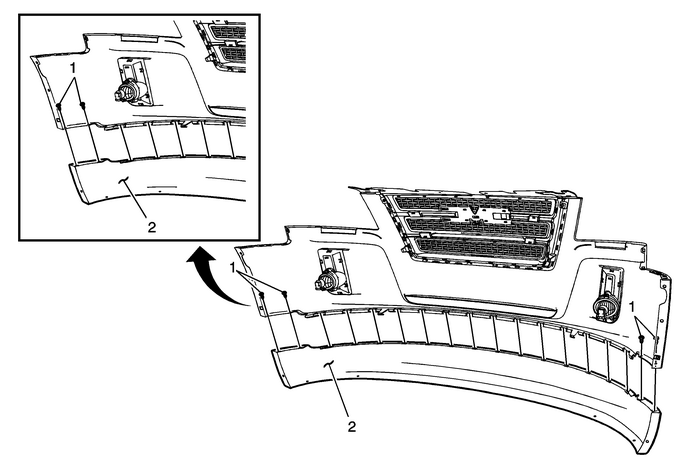

Front Bumper Lower Fascia Replacement

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer toFront Bumper Fascia Replacement.

1

Front Bumper Lower Fascia Screw

Caution:Refer toFastener Caution.

Tighten

7-Y(62-lb-in)

2

Front Bumper Lower Fascia

ProcedureCarefully push a small nylon wedge between the fascia and thelower fascia. Insert a small flat-bladed tool into the fascia slotand depress the tabs one at a time and pull on the fascia at thesame time to gradually remove the lower fascia from thefascia.Transfer parts as needed.
