Instrument Panel Lower Extension Replacement (Terrain) Consoles Center Console

Instrument Panel Lower Extension Replacement

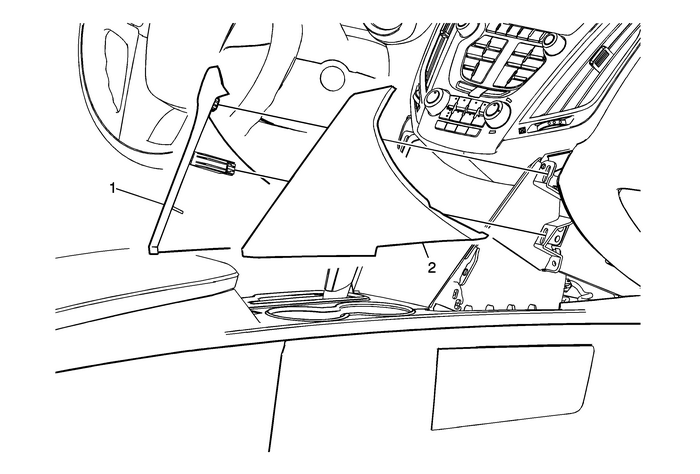

Callout

Component Name

1

Instrument Panel Lower Extension (Left)

Procedure

Use a flat bladed plastic trim tool in order to release theretainer clips securing the left instrument panel lower extensionto the instrument panel assembly.

2

Instrument Panel Lower Extension (Right)

Procedure

Use a flat bladed plastic trim tool in order to release theretainer clips securing the right instrument panel lower extensionto the instrument panel assembly.
