Instrument Panel Lower Extension Accessory Bezel Replacement (Terrain) Consoles Center Console

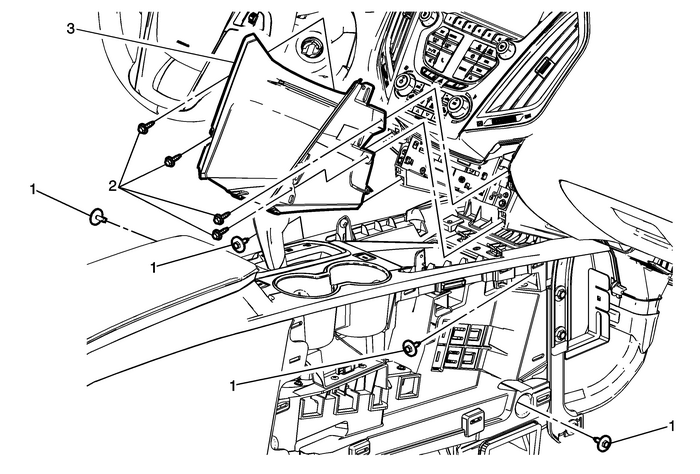

Instrument Panel Lower Extension Accessory Bezel Replacement

Callout

Component Name

Preliminary ProcedureSet the parking brake.Move the shift control knob to the most rearward position.Remove the right and left instrument panel lower extensions. Refer toInstrument Panel Lower Extension Replacement.Remove the right and left front floor console side finish cover. Refer toFront Floor Lower Console Side Finish Cover Replacement - Right SideandFront Floor Lower Console Side Finish Cover Replacement - Left Side.

1

Front Floor Console Fasteners (Qty:-4)

Caution:Refer toFastener Caution.

Tighten:

9-Y(80-lb-in)

2

Instrument Panel Lower Extension Accessory Bezel Fasteners (Qty:-4)

Tighten:

2.5-Y(22-lb-in)

3

Instrument Panel Lower Extension Accessory Bezel Assembly

ProceduresPush downward on the front of the floor console to allow enough clearance for theremoval of the accessory bezel.Rotate the bottom of the accessory bezel toward the rear of the vehicle, so the topof the bezel comes out last.Disconnect the electrical connections.When replacing the instrument panel lower extension accessory bezel, transfer componentsas necessary.
