Instrument Panel Insulator Panel Replacement - Right Side Consoles Center Console

Instrument Panel Insulator Panel Replacement - Right Side

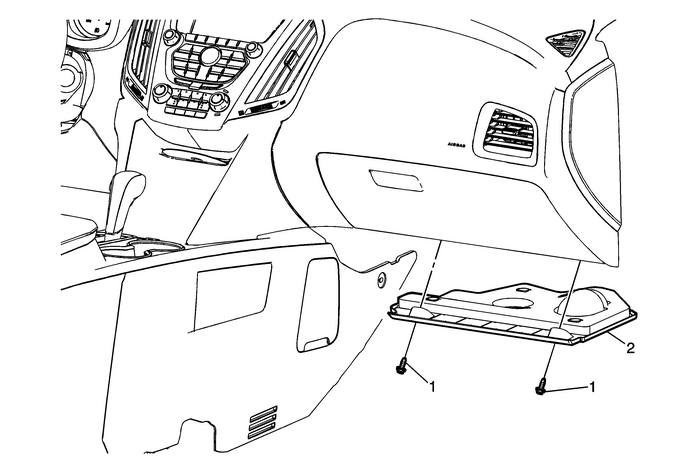

Callout

Component Name

1

Instrument Panel Insulator Panel Fasteners(Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Instrument Panel Insulator Panel Assembly

ProceduresDisconnect the electrical connections, if applicable.When replacing the instrument panel insulator panel assembly,transfer all necessary components.
Instrument Panel Insulator Panel Replacement - Left Side (Terrain) Consoles Center Console
Instrument Panel Insulator Panel Replacement - Left SideCalloutComponent NamePreliminary ProcedureRemove the drivers knee bolster panel. Refer toDriver Knee Bolster Panel Replacement.1Instrument Panel ...

Instrument Panel Insulator Panel Replacement - Right Side (Terrain) Consoles Center Console
Instrument Panel Insulator Panel Replacement - Right SideCalloutComponent Name1Instrument Panel Insulator Panel Fasteners(Qty:-3)Caution:Refer toFastener Caution.Tighten2.5-Y(22-lb-in)2Instrument Pane ...
