Instrument Panel Insulator Panel Replacement - Left Side (Terrain) Consoles Center Console

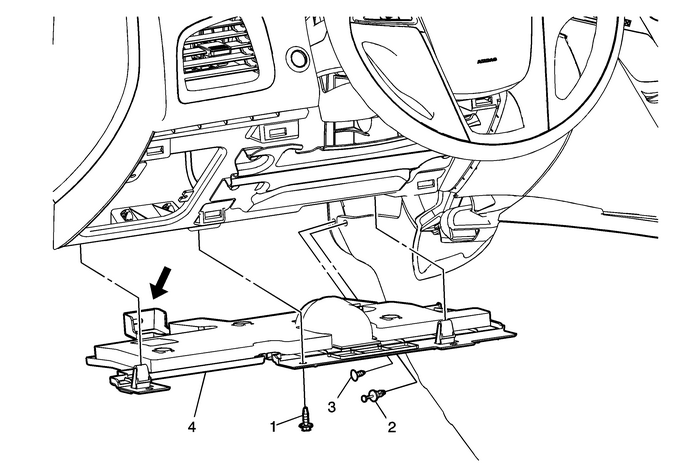

Instrument Panel Insulator Panel Replacement - Left Side

Callout

Component Name

Preliminary Procedure

Remove the drivers knee bolster panel. Refer toDriver Knee Bolster Panel Replacement.

1

Instrument Panel Insulator Panel Fastener

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Left Front Floor Lower Console Side Finish Cover Push PinRetainer

3

Instrument Panel Insulator Panel Push-in Retainer

Procedure

Pull the front edge of the left front floor lower consoleside finish cover outward enough to access the instrument panelinsulator push-in retainer.

4

Instrument Panel Insulator Panel Assembly

ProceduresDisconnect the electrical connections, if applicable.When replacing the instrument panel insulator panel assembly,transfer all necessary components.When reinstalling the insulator panel, ensure the rear tabaligns with the stud on the cowl panel.
