Front Side Door Window Frame Rear Applique Replacement Doors

Front Side Door Window Frame Rear Applique Replacement

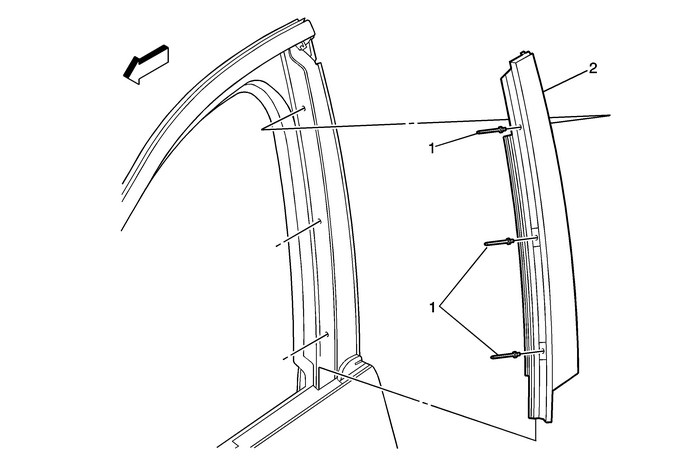

Callout

Component Name

Preliminary Procedure

Remove the front side door window belt reveal molding. RefertoFront Side Door Window Belt Reveal Molding Replacement.

1

Front Side Door Window Frame Rear Applique Rivet(Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

ProcedureLower the window to the fully down position.Apply masking tape to the applique to protect thefinish.Pull the front side door window weatherstrip away from thedoor flange to expose the rivets.When drilling cover/protect the interior trim and door frommetal shavings.Use a suitable tool, drill out the rivets from the upper doorframe.

2

Front Side Door Window Frame Rear Applique

ProcedureUse a suitable tool, install the rivets in the front sidedoor frame.Inspect the door window for proper operation.
