Front Side Door Window Belt Reveal Molding Replacement Doors

Front Side Door Window Belt Reveal Molding Replacement

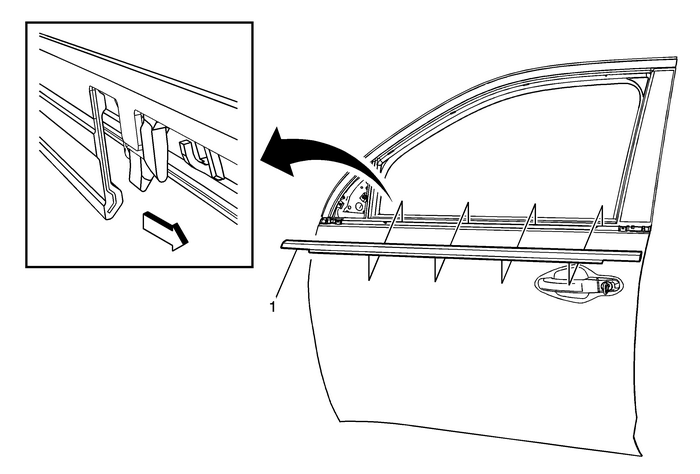

Callout

Component Name

Preliminary ProceduresPlace the window in the fully down position.Remove the outside rearview mirror. Refer toOutside Rearview Mirror Replacement.

1

Front Side Door Window Belt Reveal Molding

ProcedureApply masking tape to the applique to protect thefinish.Start at the front edge of the front side door window revealmolding, pull upward while working rearward releasing it from thedoor flange.Inspect the operation of the window before installing thedoor trim panel.

Tip:The reveal molding has two clips that attach to the innerdoor flange, front and rear edge of the molding.
