Instrument Cluster Replacement (Terrain) Gauges

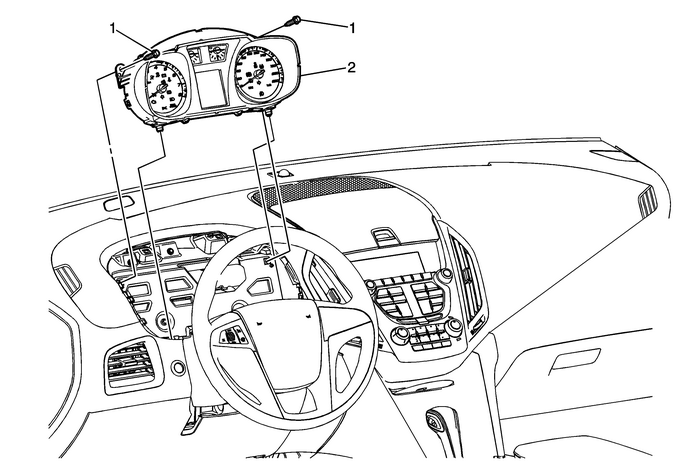

Instrument Cluster Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel cluster trim plate bezel. RefertoInstrument Panel Cluster Trim Plate Bezel Replacement.

1

Instrument Panel Cluster Fastener (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

2.5-Y(22-lb-in)

2

Instrument Panel Cluster

ProcedureDisconnect the electrical connections.Refer toControl Module Referencesfor programming and setupinformation.
