Courtesy Lamp Replacement Lighting Interior Lighting Courtesy Entry Illumination

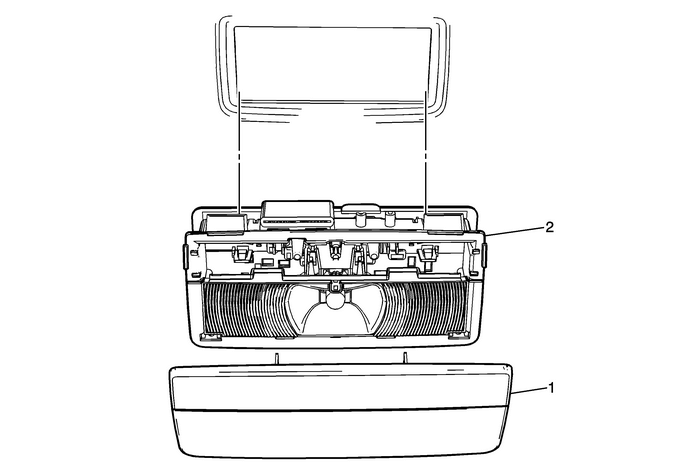

Courtesy Lamp Replacement

Callout

Component Name

1

Courtesy Lamp Lens and Bezel

Procedure

Using a nylon flat bladed tool release the lens andbezel.

2

Courtesy Lamp

Procedure

Release the retaining tabs and remove the courtesy lamp fromthe headliner.

Courtesy Lamp Bulb Replacement Lighting Interior Lighting Courtesy Entry Illumination
Courtesy Lamp Bulb ReplacementCalloutComponent Name1Courtesy Lamp LensProcedureUsing a nylon flat bladed tool release the lens to gainaccess to the bulb.2Courtesy Lamp Bulb ...

Dimmer Switch Replacement Lighting Interior Lighting
Dimmer Switch ReplacementCalloutComponent NamePreliminary ProcedureRemove the instrument panel insulator, left side. Refer toInstrument Panel Insulator Panel Replacement - Left SideRemove the driver k ...
