Heater and Air Conditioning Control Replacement

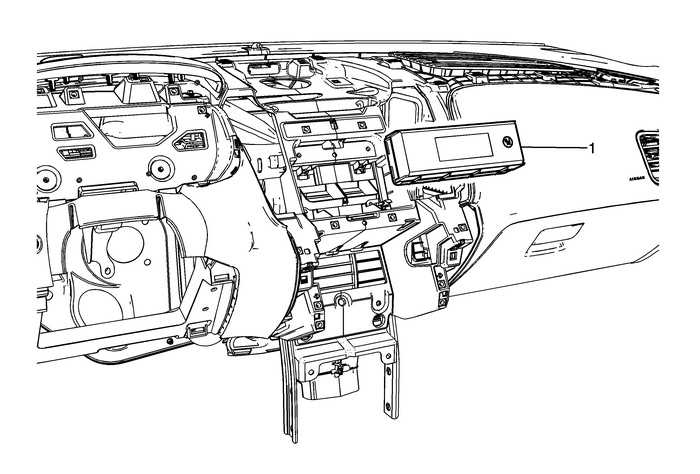

Heater and Air Conditioning Control Replacement

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper trim . Refer toInstrument Panel Upper Trim Panel Replacement.

1

Heater and Air Conditioning Control

ProcedureDisconnect the heater and air conditioning control harness connector.Program the heater and air conditioning control. Refer toControl Module References.
