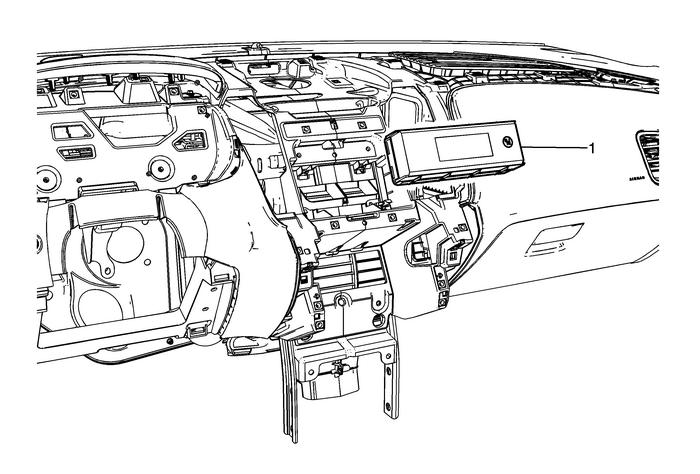

Heater and Air Conditioning Control Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel upper trim . Refer toInstrument Panel Upper Trim Panel Replacement.

Heater and Air Conditioning Control

ProcedureDisconnect the control harness electrical connector.Program the heater and air conditioning control. Refer toControl Module References.

Blower Motor Control Module Replacement

Blower Motor Control Module ReplacementCalloutComponent NamePreliminary ProceduresRemove the instrument panel insulator panel right side. RefertoInstrument Panel Insulator Panel Replacement - Right Si ...

Heater and Air Conditioning Control Replacement

Heater and Air Conditioning Control ReplacementCalloutComponent NamePreliminary ProceduresRemove the instrument panel upper trim . Refer toInstrument Panel Upper Trim Panel Replacement.1Heater and Air ...
