Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps Lighting Bulbs

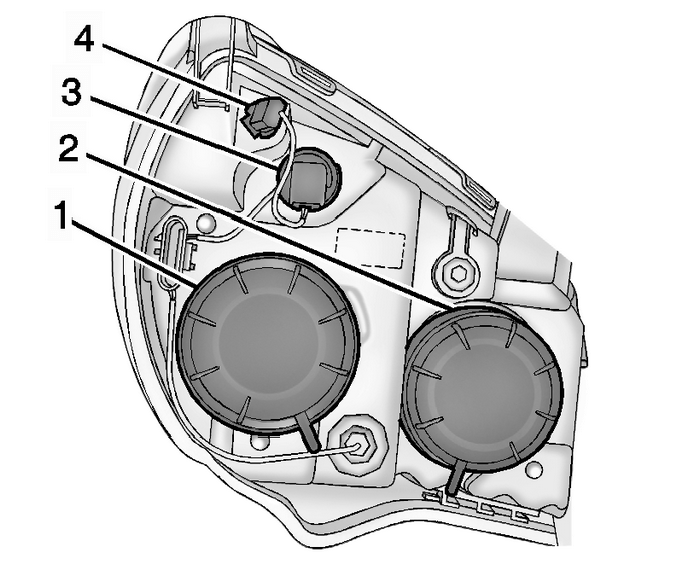

Low Beam HeadlampHigh Beam headlampPark/Turn Signal LampSidemarker Lamp

To replace:

Turn the tire to reach the access port cap on front of the wheel well cover.

Headlamps, Front Turn Signal, Sidemarker, and Parking Lamps Lighting Bulbs

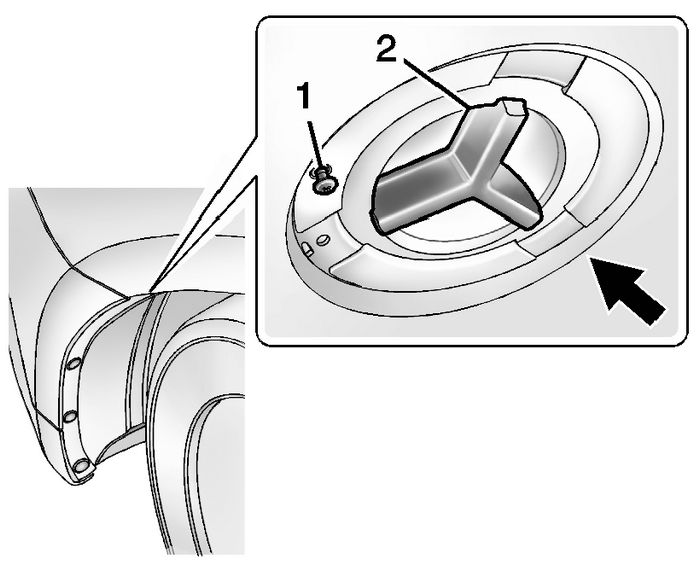

Remove screw (1) and turn the access port cap (2) counterclockwise to remove.If replacing the low/high headlamp bulb, remove the dust cover cap from the back ofthe headlamp housing by turning the cap counterclockwise.Turn the bulb socket counterclockwise to remove it from the lamp assembly.Remove the bulb from the socket or disconnect the bulb assembly from the harness connector.Install a new bulb.Reinstall the lamp socket into the lamp assembly by turning it clockwise.Replace the dust cover cap on the lamp assembly.Reinstall the wheel well cover access port cap and secure by installing the screw.

License Plate Lamp Lighting Bulbs
Lamp AssemblyBulb AssemblyBulb SocketBulbLamp AssemblyTo replace one of these bulbs:Open the liftgate partway. SeeLiftgate.Push the left end of the lamp assembly toward the right.Pull the lamp assembl ...

Parking and Turn Signal Lamp Bulb Replacement Lighting Exterior Lighting Turn Signal and Hazard Lamps
Parking and Turn Signal Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove the headlamp assembly. Refer toHeadlamp Replacement.1Park Turn Signal Lamp Bulb SocketWarning:Refer toHalo ...
