Receiver and Dehydrator Replacement

Receiver and Dehydrator Replacement

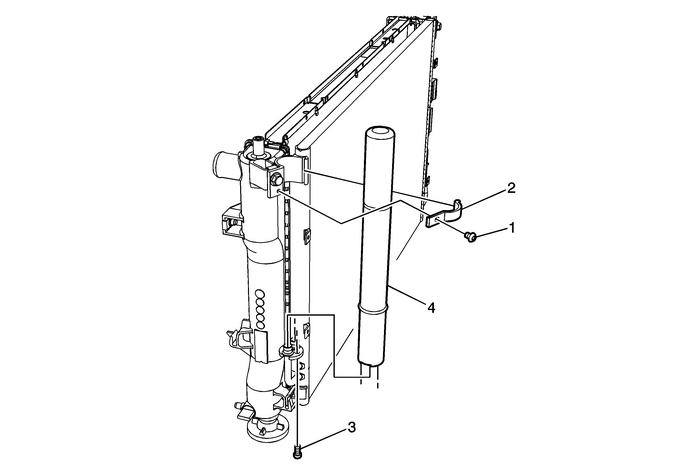

Callout

Component Name

Preliminary ProceduresRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.Remove the radiator air lower baffel and deflector. Refer toRadiator Air Lower Baffle and Deflector Replacement.Remove the radiator air upper baffel and deflector. Refer toRadiator Air Upper Baffle and Deflector Replacement.

1

Receiver and Dehydrator Bracket Bolt

Caution:Refer toFastener Caution.

Tighten

4.2-Y(37-lb-in)

2

Receiver and Dehydrator Bracket

3

Receiver and Dehydrator Bolt

Tighten

6.5-Y(58-lb-in)

4

Receiver and Dehydrator

ProcedureAdd the specified amount of polyalkylene glycol (PAG) oil tothe receiver dehydrator. Refer toRefrigerant System SpecificationsInstall new O-rings to the receiver dehydrator. Refer toAir Conditioning O-Ring Seal Replacement
