Passenger Compartment Air Filter Replacement

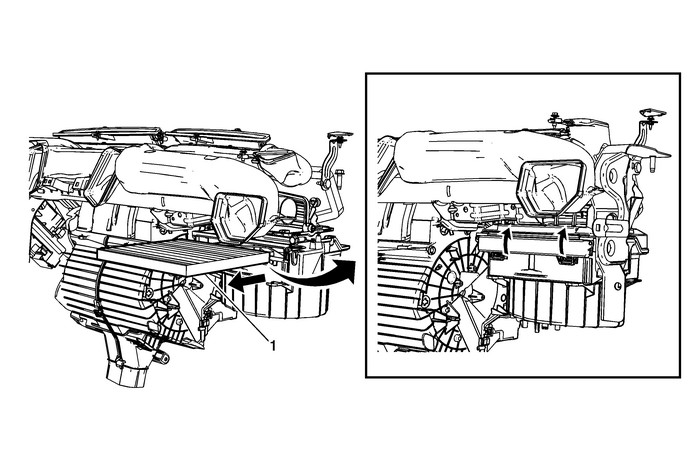

Passenger Compartment Air Filter Replacement

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer toInstrument Panel Compartment Door Replacement.

1

Passenger Compartment Air Filter

Procedure

Release the retainer and open the service lid.
