Lamp Assembly

License Plate Lamp Lighting Bulbs

Bulb Assembly

License Plate Lamp Lighting Bulbs

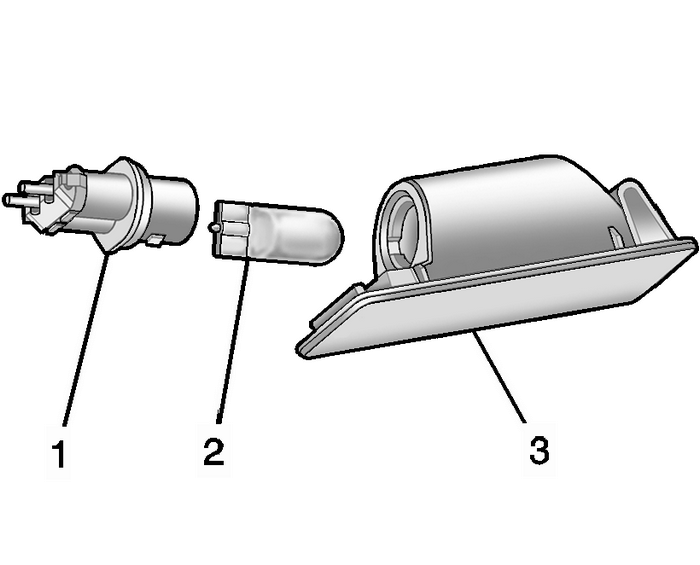

Bulb SocketBulbLamp Assembly

To replace one of these bulbs:

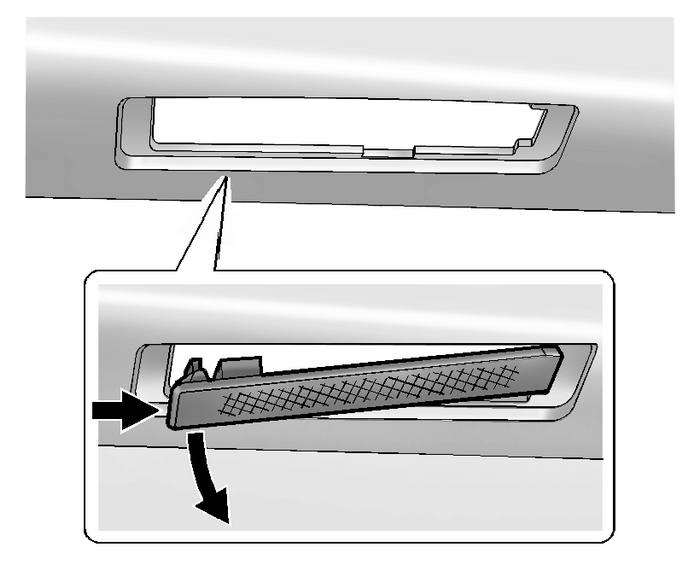

Open the liftgate partway. SeeLiftgate.Push the left end of the lamp assembly toward the right.Pull the lamp assembly down to remove it from the liftgate.Turn the bulb socket (1) counterclockwise to remove it from the lamp assembly (3).Pull the bulb (2) straight out of the bulb socket (1).Push the replacement bulb straight into the bulb socket and turn the bulb socket clockwiseto install it into the lamp assembly.Push the lamp assembly into the liftgate engaging the clip side first.Push on the lamp side opposite the clip until the lamp assembly snaps into place.
