Fuel Tank Pressure Sensor Replacement (NU6) Engine Control Engine Control Sensors Fuel Tank Pressure Sensor

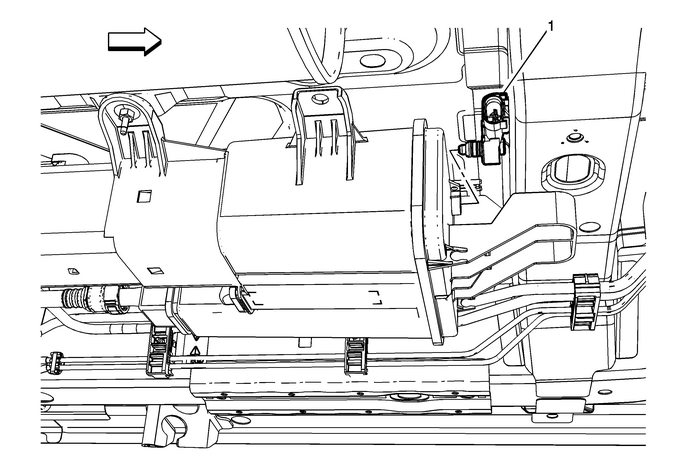

Fuel Tank Pressure Sensor Replacement

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

1

Fuel Tank Pressure Sensor

ProcedureUse a flat bladed tool to remove the sensor.Disconnect the electrical connector.
