Fuel Tank Pressure Sensor Replacement (Without NU6) Engine Control Engine Control Sensors Fuel Tank Pressure Sensor

Fuel Tank Pressure Sensor Replacement

Callout

Component Name

Preliminary ProceduresLower the fuel tank. Refer toFuel Tank Replacement.Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.

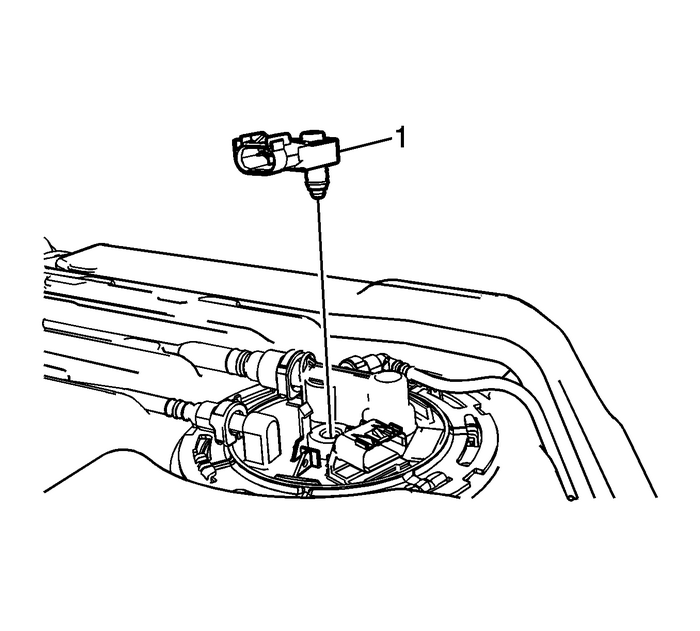

1

Fuel Tank Pressure Sensor

ProcedureUse a flat bladed tool to remove the sensor.Disconnect the electrical connector.
