Chevrolet Equinox Service Manual: Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

Chevrolet Equinox Service Manual / Powertrain / Engine / Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

Special ToolsEN-42183HandleEN-46109Guide Pin SetEN-47839Crankshaft Rear Oil Seal InstallationTool

For equivalent regional tools, refer toSpecial Tools.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

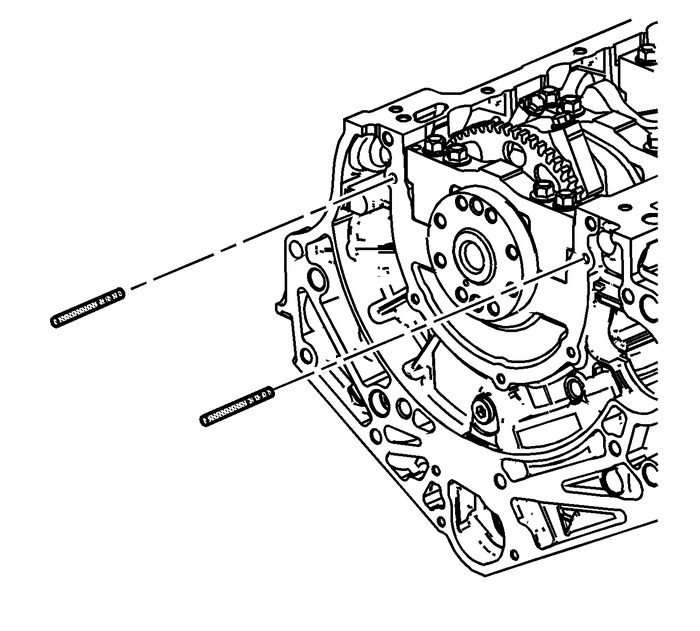

Install the 6-mm (0.236-in) guides fromtheEN-46109pin setinto the 2-crankshaft rear oil seal housingcorner bolt holes of the engine block.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

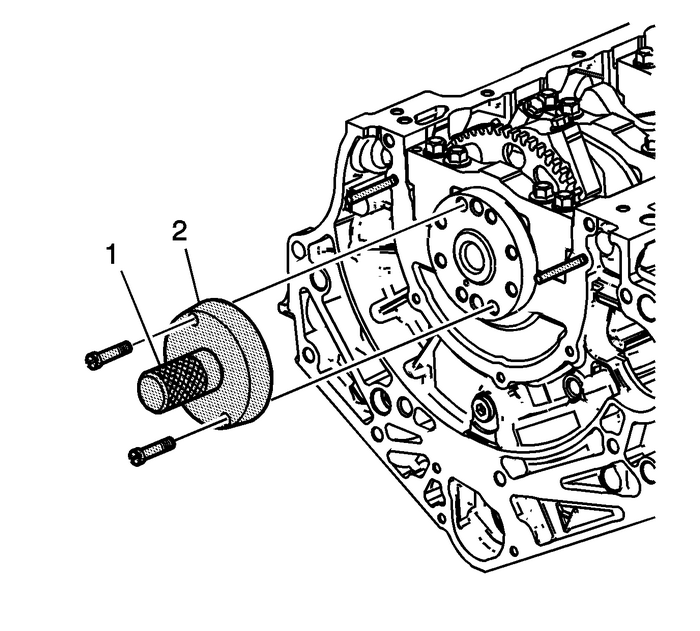

Install theEN-47839toolwith theEN-42183handle-(1, 2) onto the rear of the crankshaftflange.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

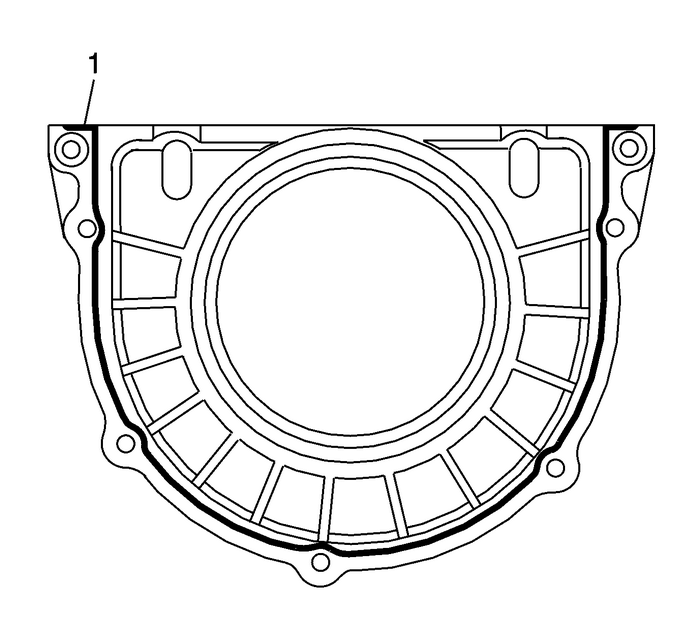

Place a 3-mm (0.118-in) bead of RTVsealant to the NEW crankshaft rear oil seal housing asshown-(1). Refer toAdhesives, Fluids, Lubricants, and Sealersfor recommendedsealant.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

Note:DO NOT allow any engine oil on the area where the crankshaftrear oil seal housing is to be installed.

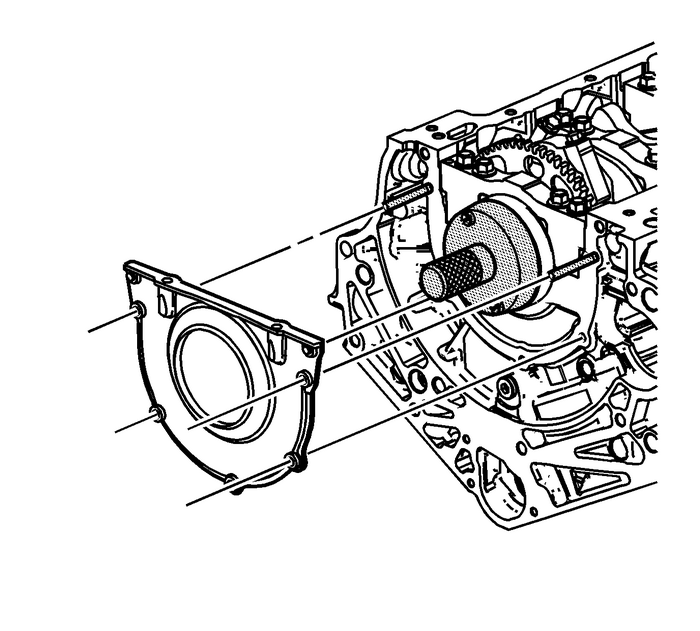

Install the crankshaft rear oil seal housing to the engineblock.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

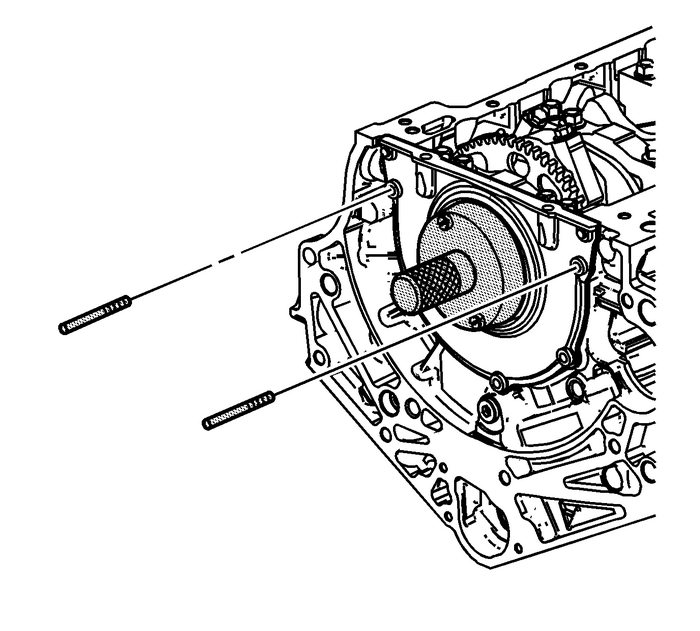

Remove theEN-46109pin set6-mm (0.236-in) guides from theengine block.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

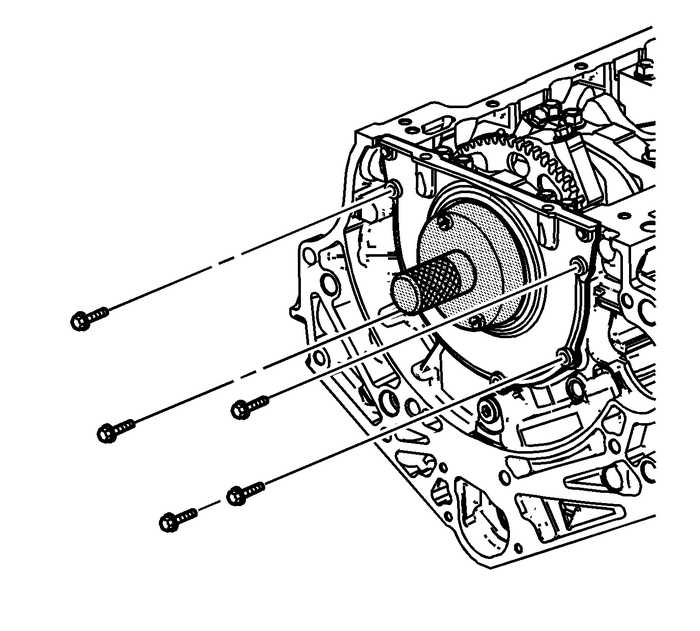

Install the crankshaft rear oil seal housing bolts.

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

Caution:Refer toFastener Caution.

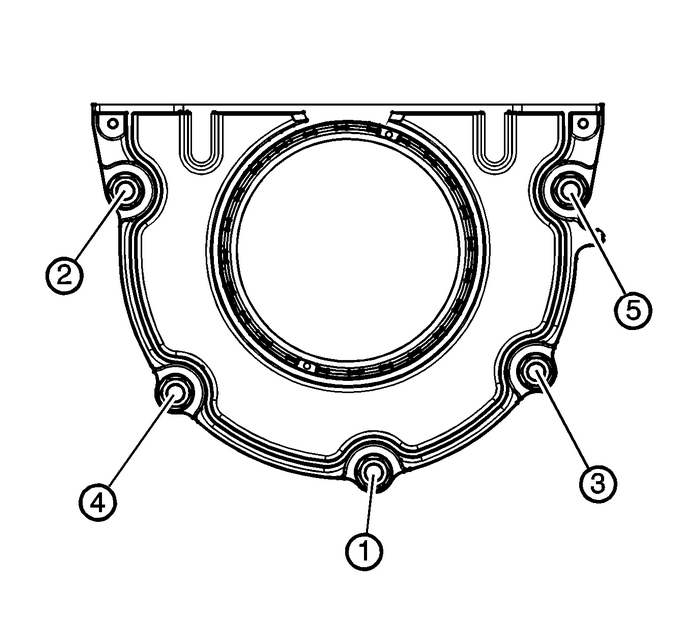

Tighten the crankshaft rear oil seal housing bolts insequence and tighten to10-Y(89-lb-in).

Crankshaft Rear Oil Seal and Housing Installation Engine Block Seals and Gaskets

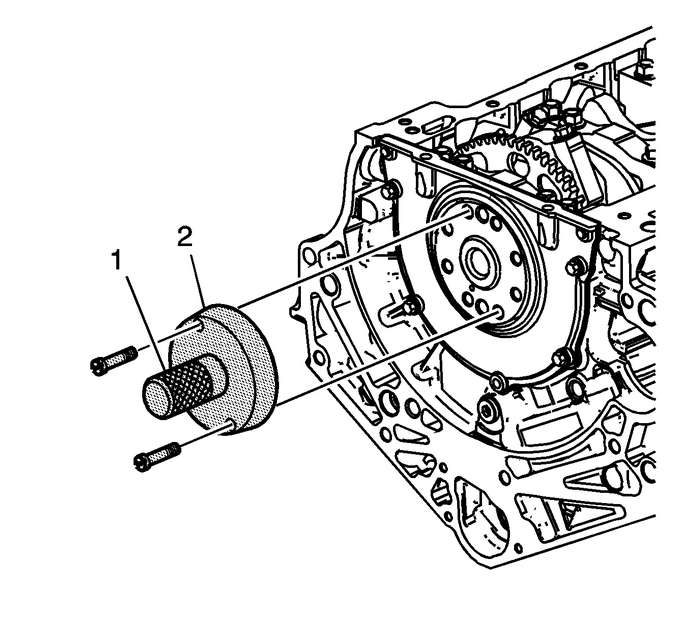

Remove theEN-47839toolandEN-42183handle-(1, 2) from the crankshaft flange.
