Chevrolet Equinox Service Manual: Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Chevrolet Equinox Service Manual / Powertrain / Internal Combustion Powertrain Control / Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Special Tools

CH-48482 Fuel Tank Sender Wrench

For equivalent region tools, refer toSpecial Tools.

Removal Procedure

Warning:Refer toGasoline/Gasoline Vapors Warning.

Remove the fuel tank. Refer toFuel Tank Replacement.

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

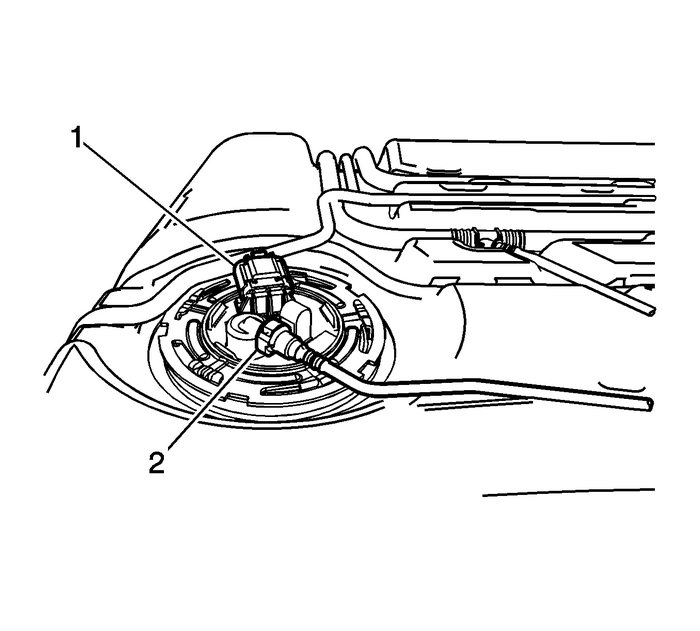

Disconnect the electrical connector-(1).Disconnect the evaporative emission line-(2). Refer toPlastic Collar Quick Connect Fitting Service.

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

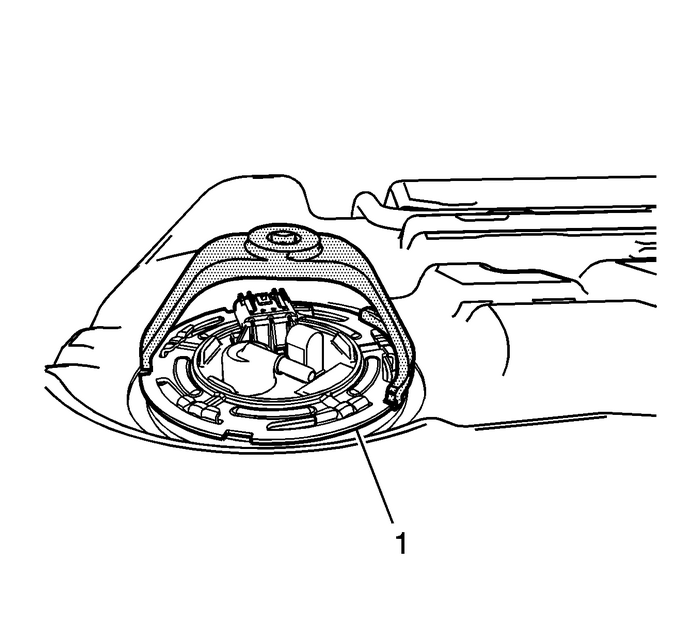

Using the CH-48482 wrench, remove the cam lock ring-(1)-by turning counterclockwise.

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

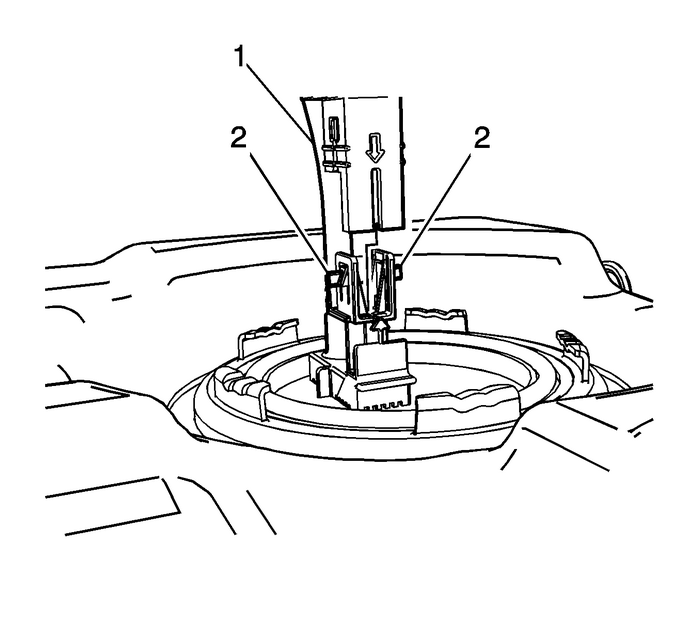

Partially raise the secondary fuel pump module and disconnect the crossover tube-(1)-bysqueezing the plastic retaining tabs-(2).

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Remove the secondary fuel tank module-(1)-and the O-ring-(2).Installation Procedure

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Partially install the secondary fuel pump module and connect the crossover tube-(1)-bysliding into position.

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

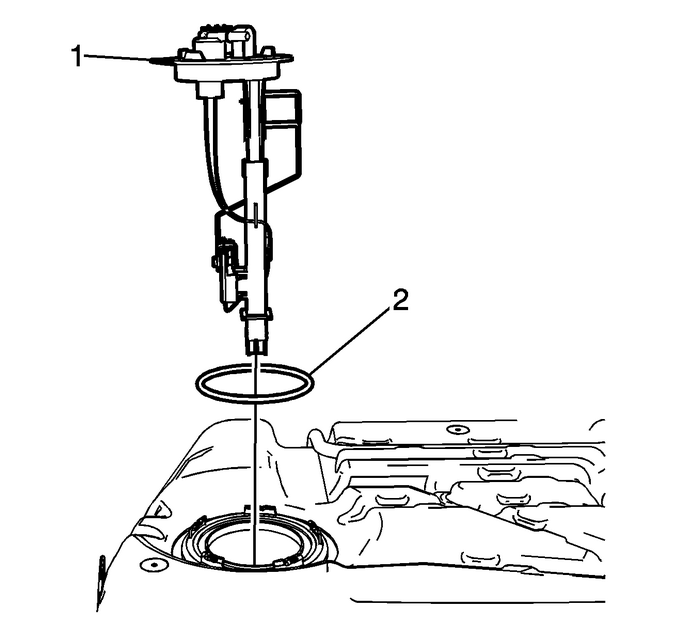

Install a NEW O-ring-(2)-and the secondary fuel tank module-(1).

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Using the CH-48482 wrench, install the cam lock ring-(1)-by turning clockwise.

Fuel Tank Fuel Pump Module Replacement - Secondary (With Out) Engine Control

Connect the electrical connector-(1).Connect the evaporative emission line-(2). Refer toPlastic Collar Quick Connect Fitting Service.Install the fuel tank. Refer toFuel Tank Replacement.
