Fuel Tank Filler Door Replacement (Terrain) Doors

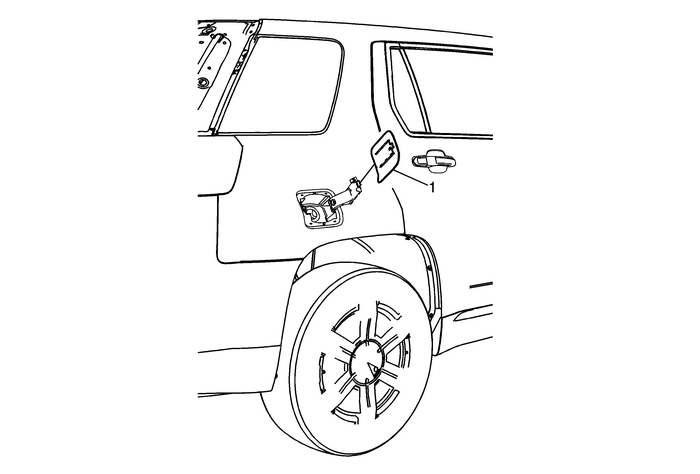

Fuel Tank Filler Door Replacement

Callout

Component Name

1

Fuel Tank Filler Door

Procedure

Position the fuel tank filler door to the full open position.Using light outward sliding pressure on the filler door, releasethe retainer on the fuel tank filler door from the hinge.
