Front Side Door Window Weatherstrip Replacement Doors

Front Side Door Window Weatherstrip Replacement

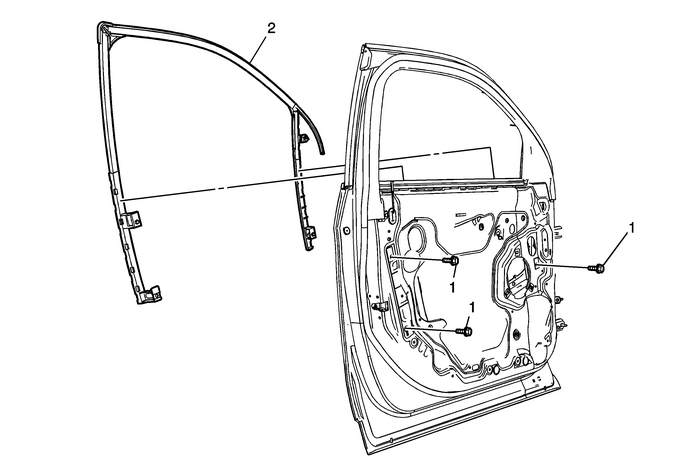

Callout

Component Name

Preliminary Procedure

Remove the front side door window. Refer toFront Side Door Window Replacement.

1

Front Side Door Window Weatherstrip Bolts(Qty:-3)

Warning:Refer toGlass and Sheet Metal Handling Warning.

Caution:Refer toFastener Caution.

ProcedureApply masking tape to the applique to protect thefinish.Remove the front side door water deflector.Tighten

11-Y(97-lb-in)

2

Front Side Door Window Weatherstrip

ProcedurePull back the upper rear corner of the weatherstrip to exposethe retainer.Remove the front side door window weatherstrip from theoutside of the door frame.Align the upper notch in the window weatherstrip to the fixedwindow post and press the weatherstrip onto the windowflange.Ensure that the weatherstrip is fully secured into the uppercorners and sides of the door frame before operating thewindow.Inspect the operation of the window before installing thedoor trim panel.
